*** There is an additional shipping cost to ship this product to certain countries, including Australia, UAE, and Saudi Arabia due to oversize.
*** This product is the manufacturer's stock and the order may take one week or more to ship.

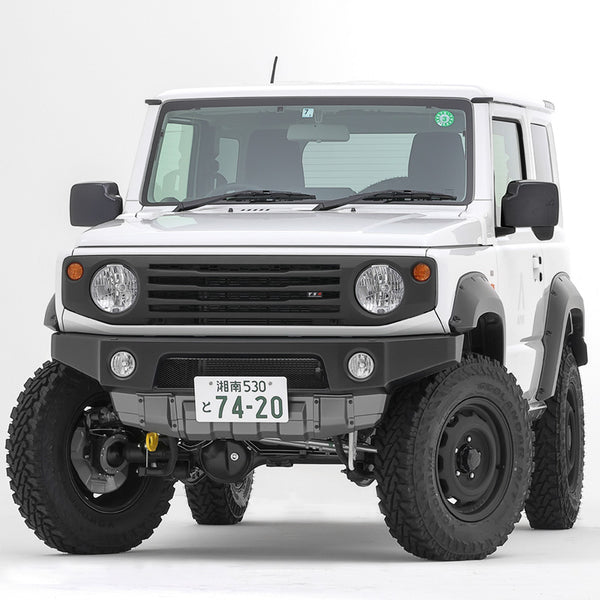

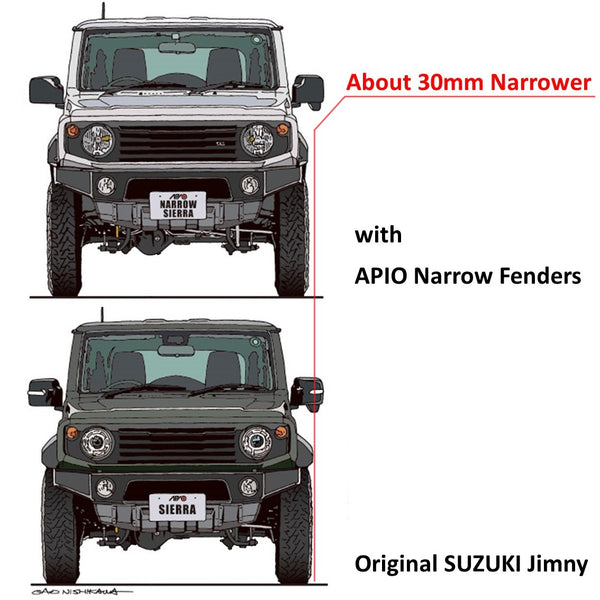

This is a Kit that allows you to modify your Jimny JB74 to look like a Japanese domestic Jimny model which has a narrow body. With these fenders that are about 30mm per side narrower than Jimny's original ones, your Jimny will be able to get driving performance on narrow roads and a slim appearance.
The Jimny JB74's original fenders are wide and give it a powerful look and stable drive. However, a narrow body is more advantageous on narrow roads in the city or narrow logging roads, in some situations. Actually, Jimny has 2 categories in Japan; Sierra and Kei-car. Jimny Sierra (JB74) has wide fenders and a 1.5L engine, the same as the international models. On the other hand, JDM (Japan Domestic Market) Kei-car Jimny (JB64), which is a Japanese-only model, is narrower and has a 660cc engine. With this kit, you can transform your Jimny into a narrower Jimny that resembles a Japanese domestic model.
[ This Kit Includes ]
- APIO Narrow Fender Flares (four fenders) -

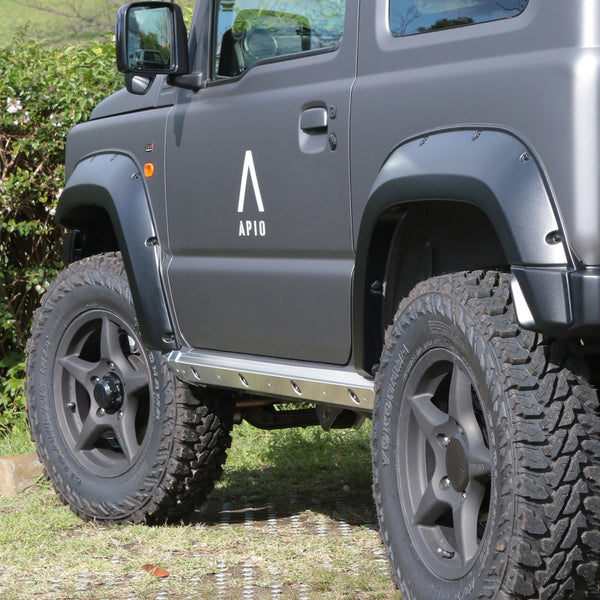

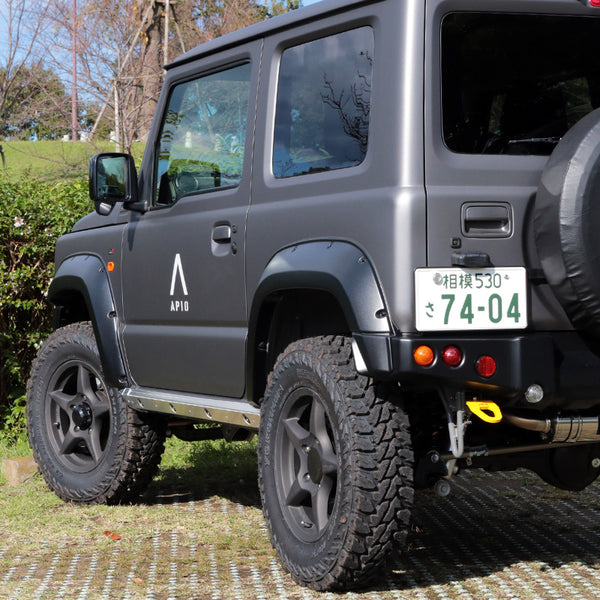

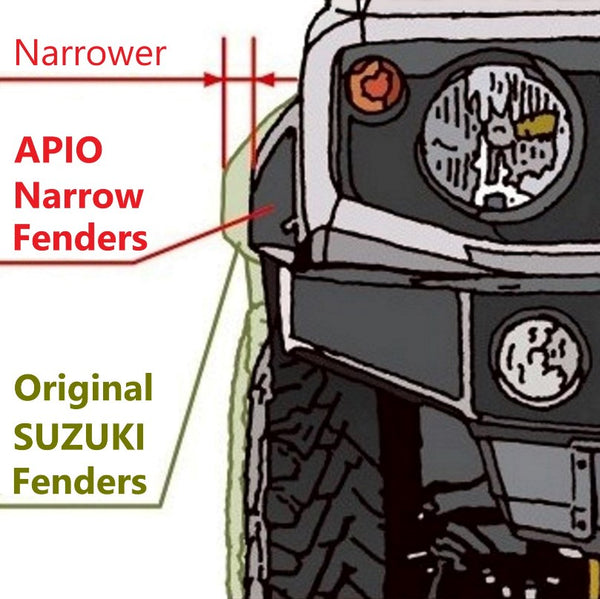

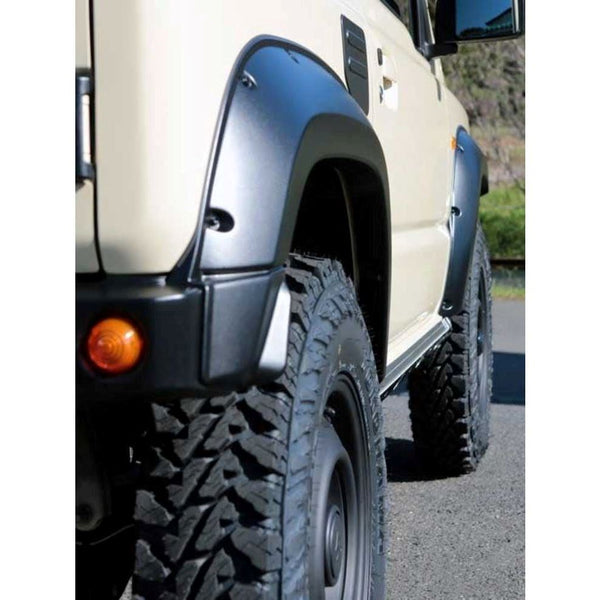

These fenders are 29mm narrower per front side and 27mm narrower per rear side than the original SUZUKI fenders. Manufactured of ABS plastic and almost the same material and look as the original SUZUKI ones. Can be installed without cutting or drilling. Not painted but painting is not required.
- APIO Dummy Bolt Heads (30 pieces) -

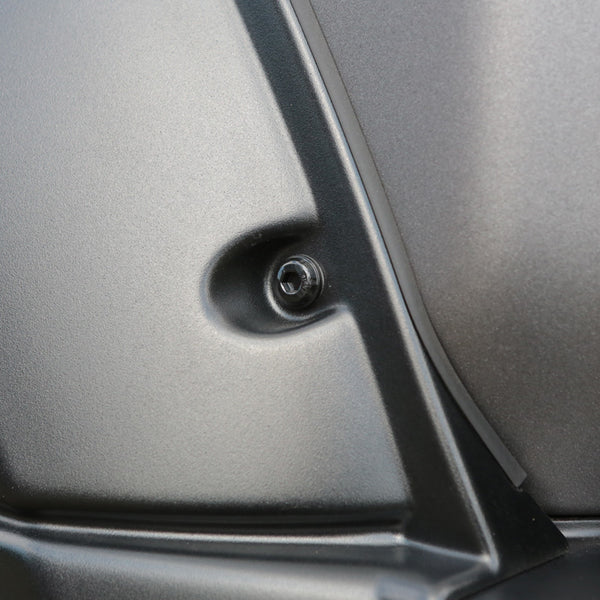

These dummy bolt heads give the classic impression that the fenders have been fixated by screws. They are just decorative bolt heads and come with adhesive tape, so just peel them off from the backing and stick them on the fenders.
- APIO Tactical Rear Bumper for JB64 -

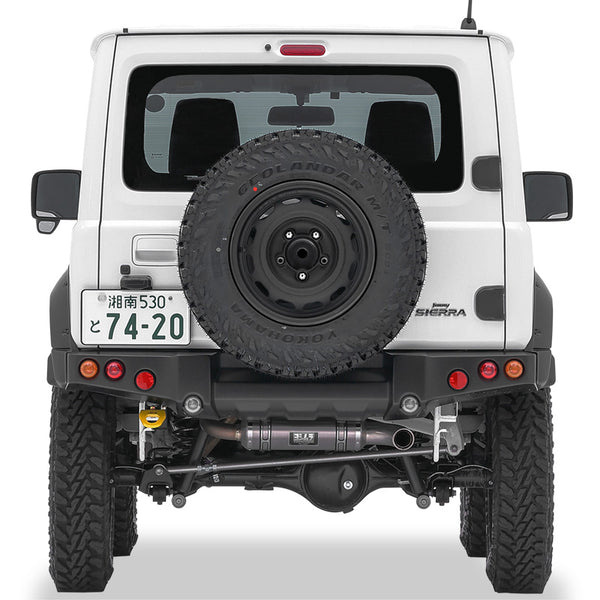

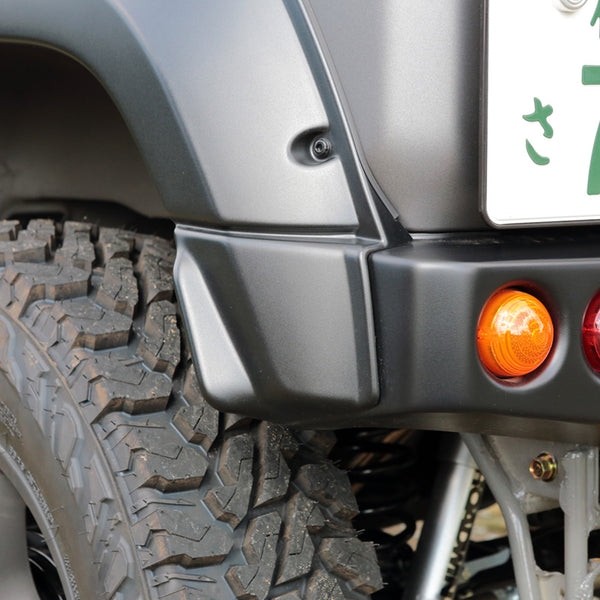

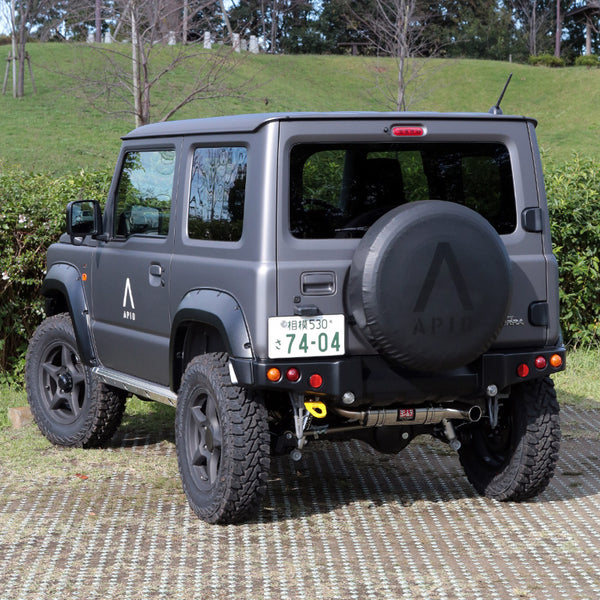

The rear ends of the Narrow Fenders have shapes that fit the APIO Tactical Rear Bumper for JB64. This bumper has a sharp and angular design that matches the new Jimny. Made of ABS plastic and a pained finish. Comes with lights that are specially designed for APIO Bumper. The taillights meet strict Japanese automobile laws and regulations. Wiring is required but drilling is not required. APIO YOSHIMURA Titanium Muffler or Stainless Steel Muffler fit with this thin rear bumper. You can add APIO Recovery Tow Points as well.
[ Required To Add ]
- Front Bumper -

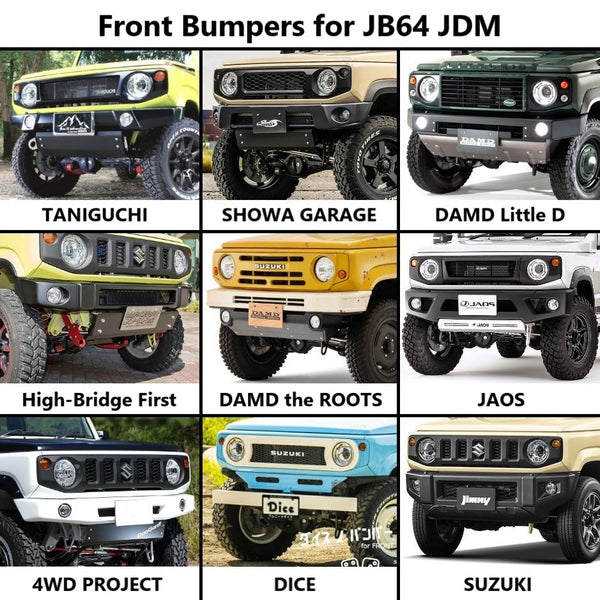

APIO Tactical Front Bumper, or some other Steel Front Bumpers, is required. It might be possible to install some bumpers for JB64 JDM, but some of them have not been tested by our shop or manufacturer. Please contact us for further information.
- License Plate Relocation Kit -
You can add APIO License Plate Relocation Kit for 18,300 JPY, or some other waterproof license plate relocation kit.
[ Recommended To Add ]
- Side Sill Guards -
To install APIO Narrow Fenders, you need to remove the original SUZUKI side sill panels. While you can leave it as is after removing the side sill panels, it is recommended to install these Side Sill Guards since they will protect your Jimny body and fit to achieve a stylish look.
< APIO Duralumin Side Sill Guards >
121,400 JPY

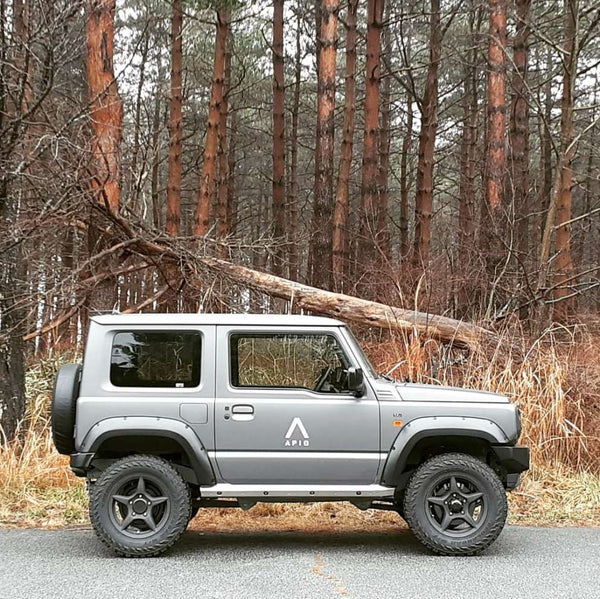

These products are designed to fit APIO Narrow fenders. They are made of two layers of 3mm-thick duralumin plates (A5052) and are extremely sturdy. Also, even including the steel bracket, it weighs only 4kg per side. Drilling and riveting are required for installation.
< RV4 WILD GOOSE Steel Side Sill Guards >
39,400 JPY
These products are designed for JB64, not for JB74, and not designed to fit APIO Narrow Fenders. However, it is possible to install these products by cutting the end of APIO Narrow Fenders slightly. They are sturdy since they are made of 3.2mm-thick steel. Also, the strength of the product has been increased through the bending process by three-dimensional strength. 5.2kg per side, semi-black color cationic coating finish. Drilling and riveting are required for installation.
- Wheels for JDM Jimny -
Wheels with higher inset (wheels for JB64, etc.) are recommended due to the narrower width of the Narrow Fenders.
16x5.5J, inset about +20 are recommended.

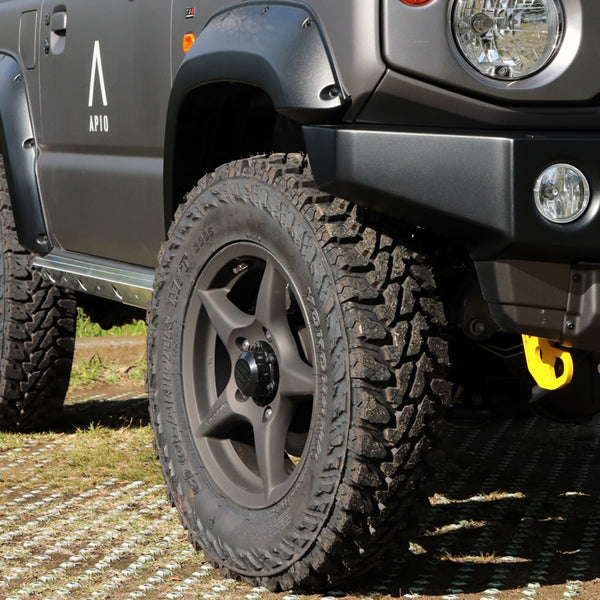

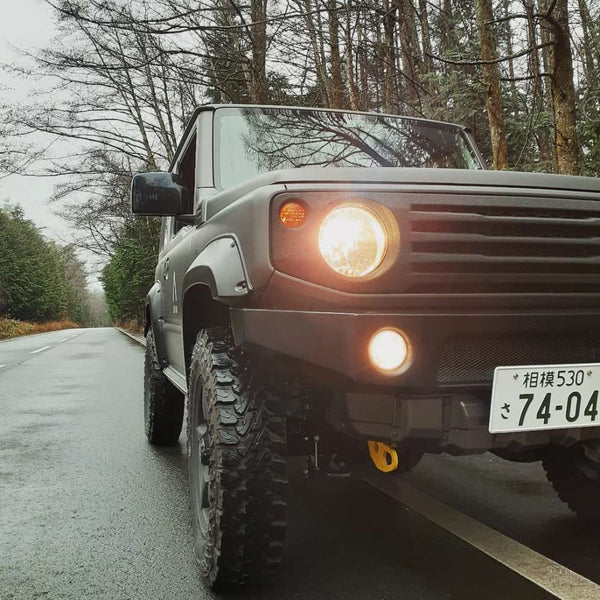

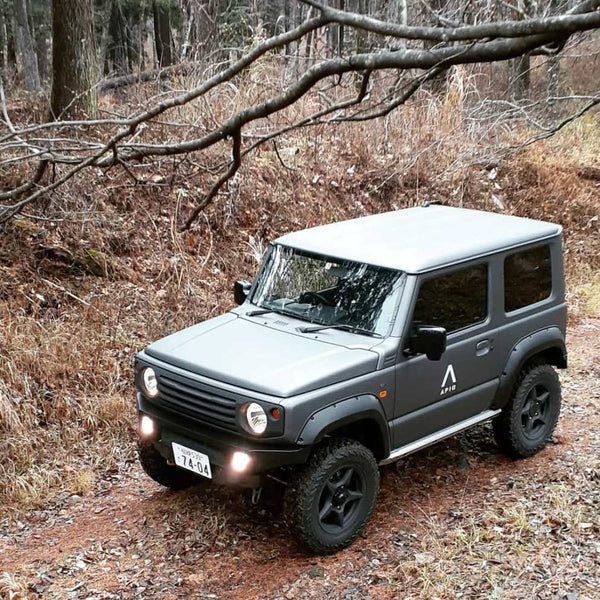

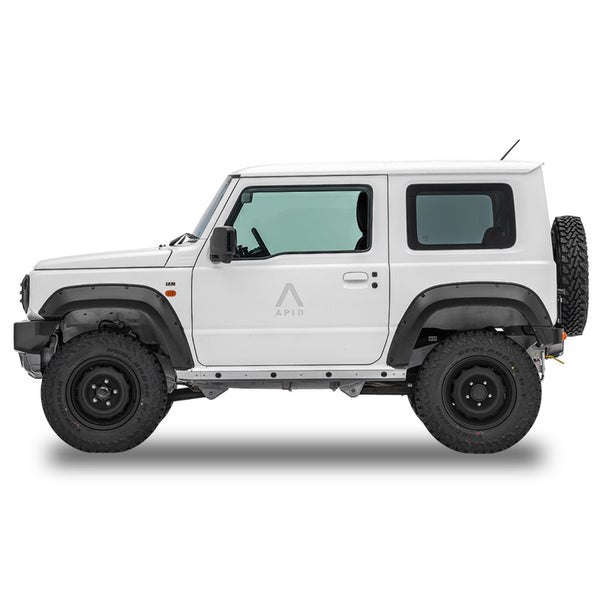

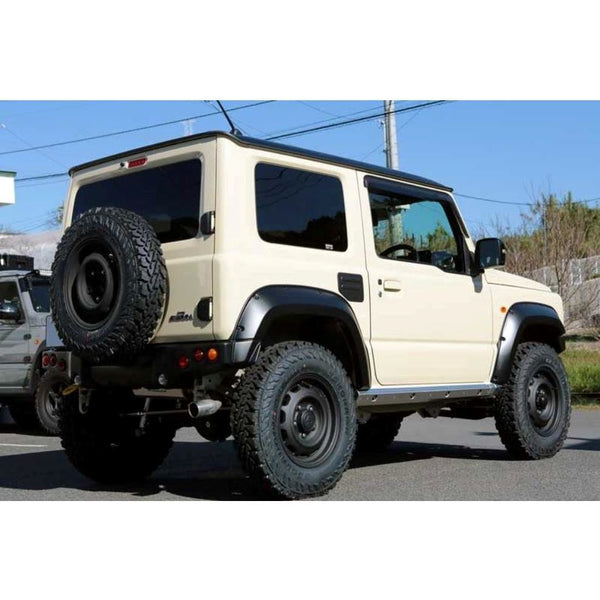

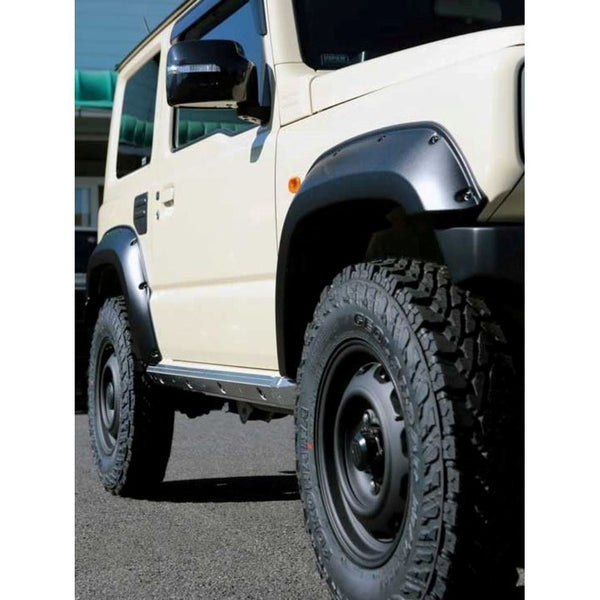

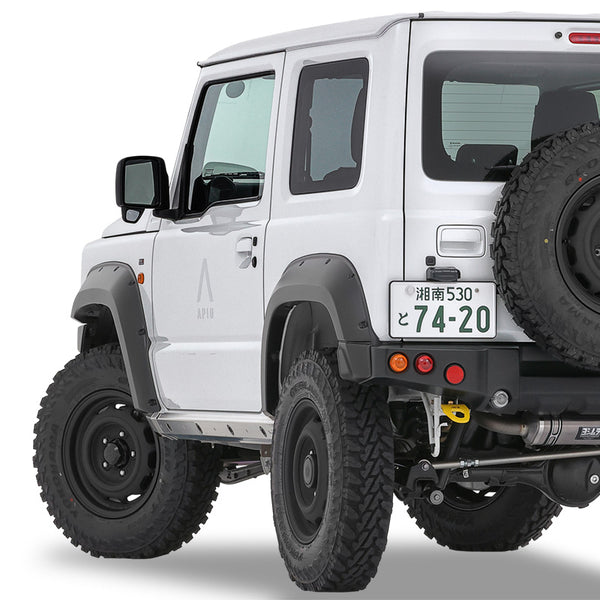

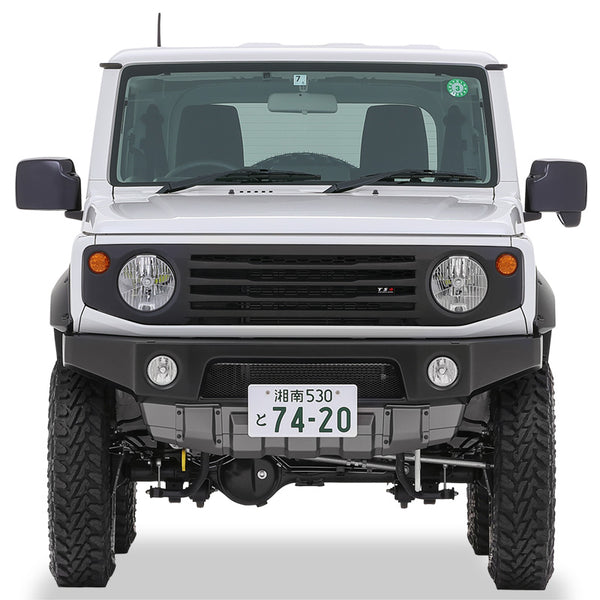

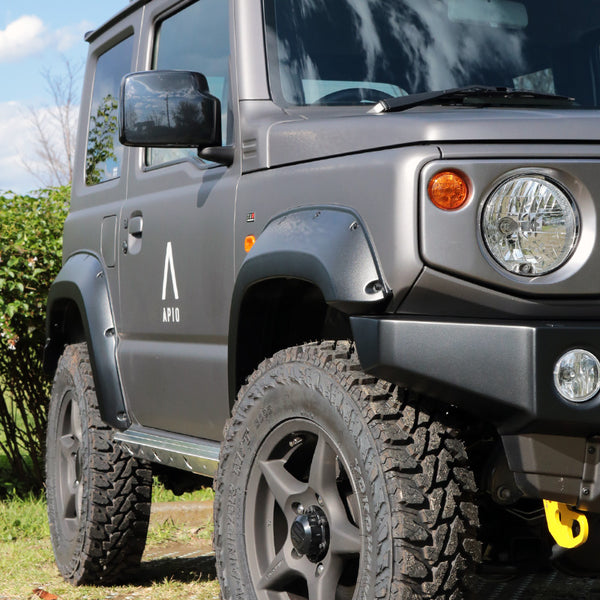

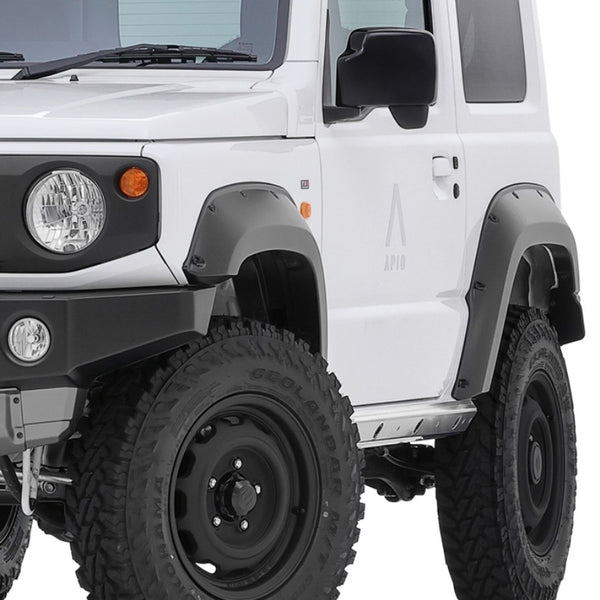

* The Jimny in the photos is equipped with a 40mm lift suspension kit, 16-inch wheels (inset: +20), and 205R16 tires.
* Narrow Fenders and Rear Bumper will be each shipped separately in some cases.
* There may be an additional shipping cost to ship this product to certain countries, including Australia, due to oversize in some cases.
Applicable vehicles: Jimny (2018-present) JB74
Brand: APIO
Mounting: Moderate (some experience and tools required)
About APIO:
APIO is Japan's leading Jimny custom parts supplier. They manufacture a huge number of Jimny products, and especially fashionable and convenient interior and exterior accessories are of high quality and very popular in Japan.
