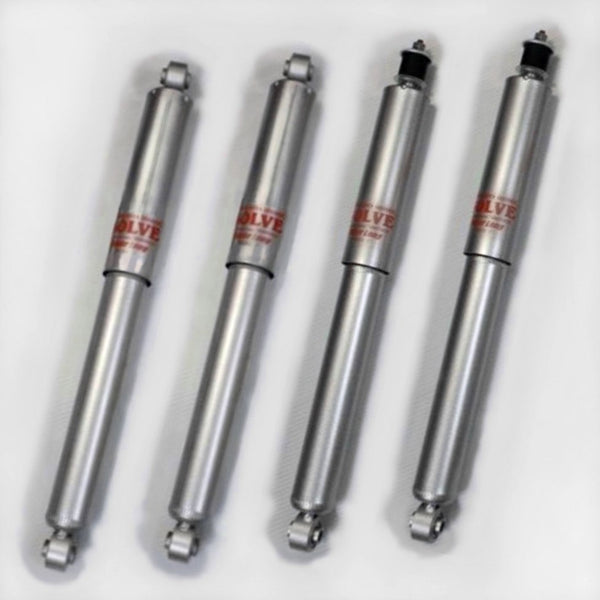

These shock absorbers by TANIGUCHI and KYB were specifically designed for the 1998 - 2018 JB43, 33, 23 Jimny. They also work well with TANIGUCHI's 3" Lift Coil Springs or 2-3" lift springs of any kind. They were developed and tested numerous times paying special attention to suspension travel, rubber bush hardness, and the damping force against the suspension velocity.
The damping force is fixed at the intermediate level of the TANIGUCHI Adjustable Shock Absorber. Low-pressure gas type, twin-tube, piston diameter is 30mm. Comes in a set of four Shock Absorbers. Made in Japan.
TANIGUCHI suspensions are highly recommended as the best performance suspension for Jimny in Japan. They are designed from Jimny's vast data and technology by TANIGUCH's 40 years of Jimny experience. They spend a lot of time testing these products with leading test drivers and these products are manufactured with top automobile makers. It is a high-performance suspension that has improved on-road and off-road driving performance, drive quality, and comfort more than the SUZUKI original ones. Also, whether the stabilizer is installed or removed, the settings are designed to provide stable, high-performance driving both on and off-road.
[ Required ]
- 50mm extended brake hoses
- Longer coil springs (2-3"/50-75mm lift)
- Caster Correction Bushes (5.0, or 5.0 and 2.5), or Caster Corrected Front Radius Arms
[ Recommended ]
- Rear Adjustable Panhard Rod, or Rear Panhard Rod Correction Brackets (both recommended)
- Front Adjustable Panhard Rod, or Steering and Front Panhard Rod Correction Kit
- Extended bump stop (X-large Bump Stop or Bump Stop Block etc.)
[ Required in some cases ]
- Propeller shaft spacer
- Stabilizer correction item (Offset Stabilizer Bracket etc.)
|
|
front |
rear |
|
extended length (mm) |
480 |
525 |
|
compressed length (mm) |
296 |
324 |
Applicable vehicles: Jimny (1998-2018) JB43, 33, 23
Brand: TANIGUCHI, KYB
Mounting: Professional (professional installation required)
About TANIGUCHI:
Our shop trusts "Off-Road Service TANIGUCHI" is Japan's best Jimny custom parts supplier. They have manufactured more than 300 Jimny products since 1983. Especially their suspensions and drivetrains are best-performance products. TANIGUCHI spends a lot of time testing its products with leading test drivers. Also, protection, interior, and exterior products have been highly evaluated for their superior quality and thoughtful construction.
TANIGUCHI Shock Absorbers for 2-3"/50-75mm lifted Jimny (1998-2018)
These shock absorbers by TANIGUCHI and KYB were specifically designed for the 1998 - 2018 JB43, 33, 23 Jimny. They also work well with TANIGUCHI's 3" Lift Coil Springs or 2-3" lift springs of any kind. They were developed and tested numerous times paying special attention to suspension travel, rubber bush hardness, and the damping force against the suspension velocity.
The damping force is fixed at the intermediate level of the TANIGUCHI Adjustable Shock Absorber. Low-pressure gas type, twin-tube, piston diameter is 30mm. Comes in a set of four Shock Absorbers. Made in Japan.
TANIGUCHI suspensions are highly recommended as the best performance suspension for Jimny in Japan. They are designed from Jimny's vast data and technology by TANIGUCH's 40 years of Jimny experience. They spend a lot of time testing these products with leading test drivers and these products are manufactured with top automobile makers. It is a high-performance suspension that has improved on-road and off-road driving performance, drive quality, and comfort more than the SUZUKI original ones. Also, whether the stabilizer is installed or removed, the settings are designed to provide stable, high-performance driving both on and off-road.
[ Required ]
- 50mm extended brake hoses
- Longer coil springs (2-3"/50-75mm lift)
- Caster Correction Bushes (5.0, or 5.0 and 2.5), or Caster Corrected Front Radius Arms
[ Recommended ]
- Rear Adjustable Panhard Rod, or Rear Panhard Rod Correction Brackets (both recommended)
- Front Adjustable Panhard Rod, or Steering and Front Panhard Rod Correction Kit
- Extended bump stop (X-large Bump Stop or Bump Stop Block etc.)
[ Required in some cases ]
- Propeller shaft spacer
- Stabilizer correction item (Offset Stabilizer Bracket etc.)
|
|
front |
rear |
|
extended length (mm) |
480 |
525 |
|
compressed length (mm) |
296 |
324 |
Applicable vehicles: Jimny (1998-2018) JB43, 33, 23
Brand: TANIGUCHI, KYB
Mounting: Professional (professional installation required)
About TANIGUCHI:
Our shop trusts "Off-Road Service TANIGUCHI" is Japan's best Jimny custom parts supplier. They have manufactured more than 300 Jimny products since 1983. Especially their suspensions and drivetrains are best-performance products. TANIGUCHI spends a lot of time testing its products with leading test drivers. Also, protection, interior, and exterior products have been highly evaluated for their superior quality and thoughtful construction.
