When the Jimny is lifted, the caster angle and propeller shaft angle are changed, and the driving performance may deteriorate or there may be a sound from the shaft. When there is a sound from the shaft, it may be a good idea to install these products, especially on the rear.
If you wish to install these products on the front, please note that the emphasis on straight-line stability and measures against abnormal noise is reversed depending on the installation side. We don't recommend installing more than 4-degree wedges on the front.
Also, if there is a sound from the shaft, the transfer mounting brackets or propeller shaft may have problems as well. In addition to the ways to install the Caster Wedges, please consider the following ways to fix the problem.
1, Grease the propeller shaft.
2, Check the propeller shaft joints, shaft spline, and transfer bearing. If they have any problems, please change them into new ones.
3, Please consider installing about 10mm propeller shaft spacer.
4, Lift the back of the transfer and tilt it, by installing a spacer on a part of the transfer mounting stay.
Comes with two wedges and two high tensile strength bolts.
* Even though this product is designed for Suzuki Jimny, it may fit other vehicles. But please note it has only ever been tested on SUZUKI Jimny. The width is 50mm. Please refer to the size and photos.
* Depending on the leaf springs, an extended U-shaped bolt may be required especially inside on the right front side if you will install this product.
Applicable vehicles: Jimny (1981-1995) SJ40, 30 JA51, 71, 11 JB31
Brand: TANIGUCHI
Size: width 50mm, 3 degree
Mounting: Professional (professional installation required)
About TANIGUCHI:
Our shop trusts "Off-Road Service TANIGUCHI" is Japan's best Jimny custom parts supplier. They have manufactured more than 300 Jimny products since 1983. Especially their suspensions and drivetrains are best-performance products. TANIGUCHI spends a lot of time testing its products with leading test drivers. Also, protection, interior, and exterior products have been highly evaluated for their superior quality and thoughtful construction.

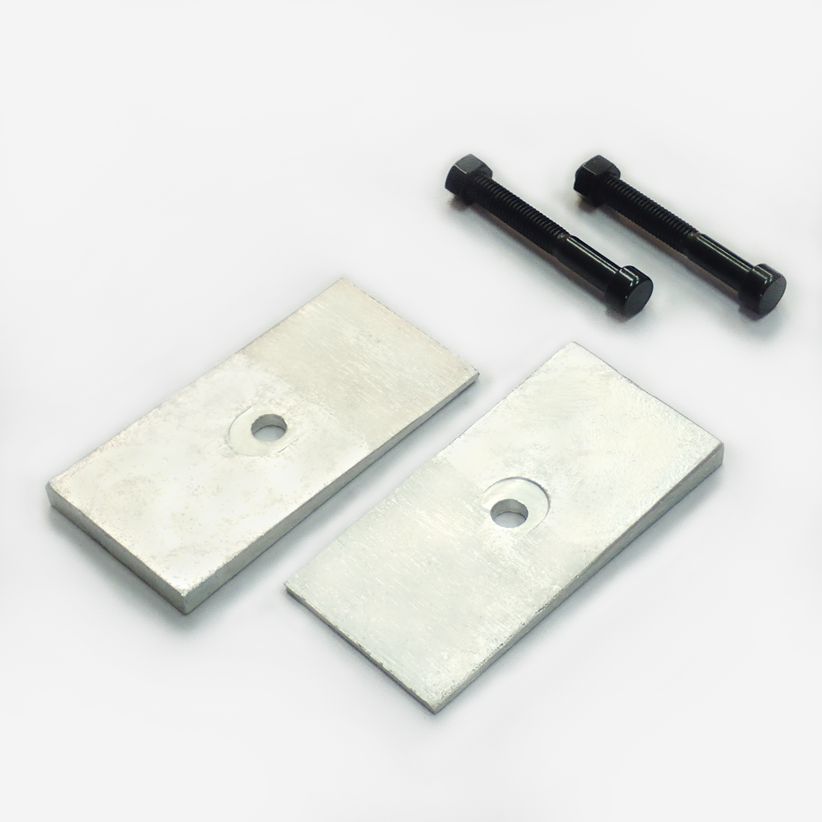

TANIGUCHI Caster Wedges 3 Degree 50mm Jimny (1981-1995)
When the Jimny is lifted, the caster angle and propeller shaft angle are changed, and the driving performance may deteriorate or there may be a sound from the shaft. When there is a sound from the shaft, it may be a good idea to install these products, especially on the rear.
If you wish to install these products on the front, please note that the emphasis on straight-line stability and measures against abnormal noise is reversed depending on the installation side. We don't recommend installing more than 4-degree wedges on the front.
Also, if there is a sound from the shaft, the transfer mounting brackets or propeller shaft may have problems as well. In addition to the ways to install the Caster Wedges, please consider the following ways to fix the problem.
1, Grease the propeller shaft.
2, Check the propeller shaft joints, shaft spline, and transfer bearing. If they have any problems, please change them into new ones.
3, Please consider installing about 10mm propeller shaft spacer.
4, Lift the back of the transfer and tilt it, by installing a spacer on a part of the transfer mounting stay.
Comes with two wedges and two high tensile strength bolts.
* Even though this product is designed for Suzuki Jimny, it may fit other vehicles. But please note it has only ever been tested on SUZUKI Jimny. The width is 50mm. Please refer to the size and photos.
* Depending on the leaf springs, an extended U-shaped bolt may be required especially inside on the right front side if you will install this product.
Applicable vehicles: Jimny (1981-1995) SJ40, 30 JA51, 71, 11 JB31
Brand: TANIGUCHI
Size: width 50mm, 3 degree
Mounting: Professional (professional installation required)
About TANIGUCHI:
Our shop trusts "Off-Road Service TANIGUCHI" is Japan's best Jimny custom parts supplier. They have manufactured more than 300 Jimny products since 1983. Especially their suspensions and drivetrains are best-performance products. TANIGUCHI spends a lot of time testing its products with leading test drivers. Also, protection, interior, and exterior products have been highly evaluated for their superior quality and thoughtful construction.
