TANIGUCHI 2" / 55mm Lift Premium Suspension Kit Jimny (1981-1995)
TANIGUCHI 2" / 55mm Lift Premium Suspension Kit Jimny (1981-1995)
TANIGUCHI 2" / 55mm Lift Premium Suspension Kit Jimny (1981-1995)
TANIGUCHI 2" / 55mm Lift Premium Suspension Kit Jimny (1981-1995)
TANIGUCHI 2" / 55mm Lift Premium Suspension Kit Jimny (1981-1995)
TANIGUCHI 2" / 55mm Lift Premium Suspension Kit Jimny (1981-1995)
TANIGUCHI 2" / 55mm Lift Premium Suspension Kit Jimny (1981-1995)
TANIGUCHI 2" / 55mm Lift Premium Suspension Kit Jimny (1981-1995)

High performance and ideal suspension kit that lifts your Jimny 2-2.5" / 50-60mm. Composed of selected parts, it has extremely high performance!

TANIGUCHI "MUSO-KENKA" Leaf Springs are like the dream Jimny leaf springs into which TANIGUCHI's experience and technology were put. Comfortable driving in the city, stable high-speed cruise, strong traction performance, amazing suspension travel, can drive really high speed on dirt, excellent durability, many achievements in competition… All are harmonized in high dimensions. TANIGUCHI FINAL Shock Absorbers are designed to match the TANIGUCHI leaf springs where the damping force was set by repeating the test numerous times.

Reliable operation and comfort are realized from off-road to city and high speed driving. They are the most highly evaluated Suspension for Jimny in Japan. You can choose the shackle according to your preference. Made in Japan.


TANIGUCHI suspensions are highly recommended as the best performance suspension for Jimny in Japan. They are designed from Jimny's vast data and technology by TANIGUCH's 40 years of Jimny experience. They spend a lot of time testing these products with leading test drivers and these products are manufactured with top automobile makers. It is a high-performance suspension that has improved on-road and off-road driving performance, drive quality and comfort more than the SUZUKI original ones. Also, whether the stabilizer is installed or removed, the settings are designed to provide stable, high-performance driving both on and off-road.

These leaf springs are designed for RHD (right-hand drive), but it is possible to install for LHD (left-hand drive) as well. Actually, several of our LHD customers have already installed these products without any issues. If there is a difference in height between the left and right, please consider using the included leaf spacers. However, this has only ever been tested on one model of LHD Jimny and may not work on all models. This product is designed so that the right side (driver's seat side) of RHD is slightly higher when no one is on board.



A Kit for a car with a stabilizer comes with four stabilizer correction spacers or a Kit for a car without a stabilizer.

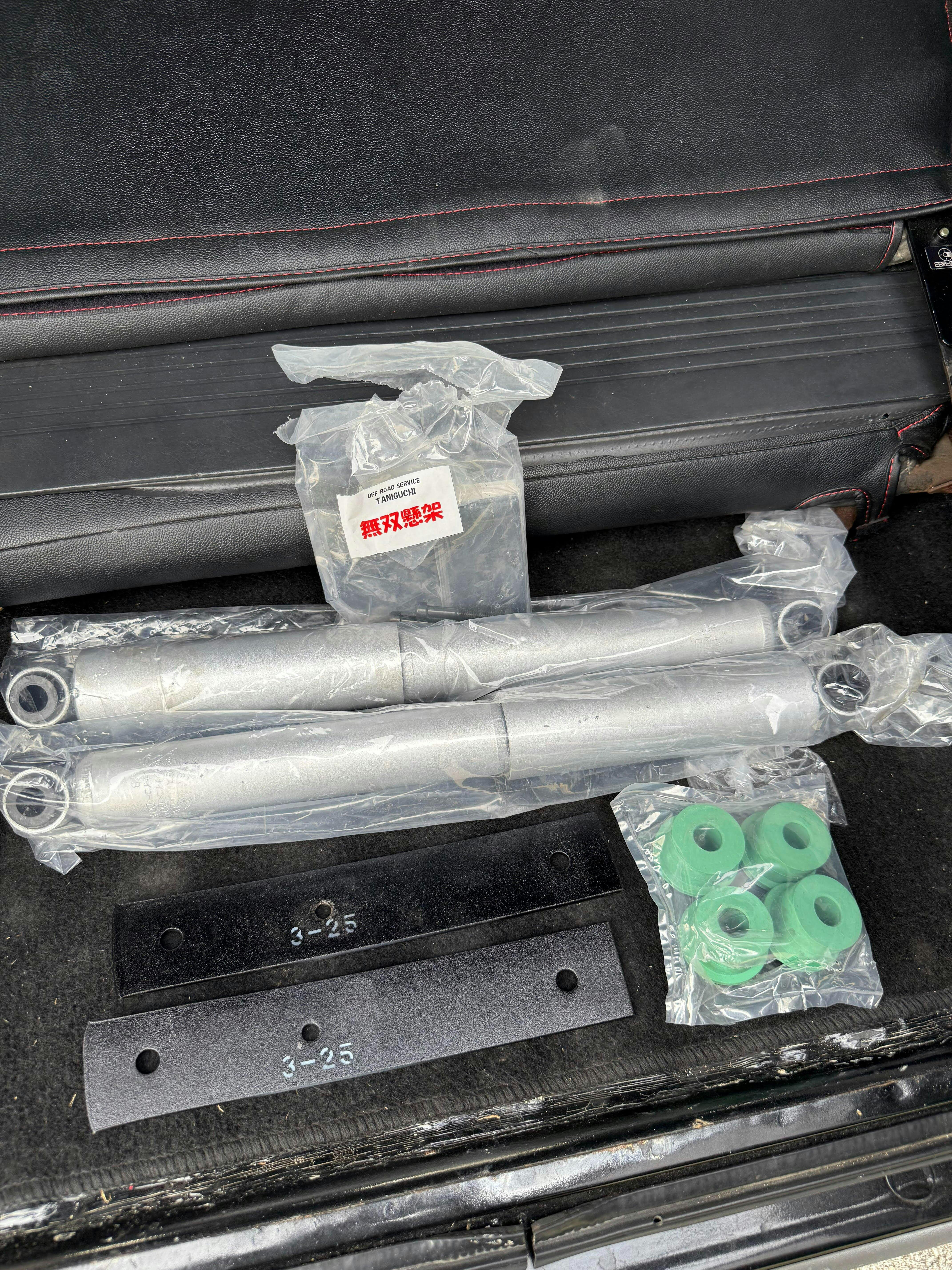

This kit comes with Competition Leaf Springs MUSO-KENKA, FINAL Shock Absorbers, 50mm extended brake hoses, FINAL Shackles, polyurethane bushes set, front caster wedges 3°, rear caster wedges 3°, four front extended U bolts, four rear extended U bolts, and front stabilizer correction spacers (only for shackles with stabilizer).


Note; When shipped, the rear leaf springs are comprised of 4 pieces and come with 5th leaf springs as an option.
- For hardtop (van) Jimny or those who prefer a hard off-road drive, even with a soft-top (convertible), add the optional 5th leaves and make them into 5-piece leaf springs.
- Those who prefer a slightly softer ride, please use the basic 4 leaf springs without attaching the optional 5th leaf springs.
- If you want to use it on SJ40, 30, or soft-top, or if you prefer a soft ride even on the hardtop, replace the 4th leaves with the optional 5th leaves and use them as 4-piece leaf springs.



Leaf Springs
Number of leaves: 5
Width of leaves: 50mm
Leaves’ thickness: front 6/5/5/5/5, rear 6/6/5/5/5 mm (from top to bottom)



front

rear

spring rate (kgf/mm)

2.99

2.68

free camber (mm)

L130 R145

L170 R190

Shock Absorbers



front

rear

extended length (mm)

454

480

compressed length (mm)

282

300

Applicable vehicles: Jimny (1981-1995) JB31, JA51, 71, 11, SJ30, 40 RHD (right-hand drive)
Brand: TANIGUCHI
Lift height: front 50mm, rear 55mm (JA51)
Mounting: Professional (professional installation required)

About TANIGUCHI:
Our shop trusts "Off-Road Service TANIGUCHI" is Japan's best Jimny custom parts supplier. They have manufactured more than 300 Jimny products since 1983. Especially their suspensions and drivetrains are best-performance products. TANIGUCHI spends a lot of time testing its products with leading test drivers. Also, protection, interior, and exterior products have been highly evaluated for their superior quality and thoughtful construction.

TANIGUCHI 2" / 55mm Lift Premium Suspension Kit Jimny (1981-1995)

Regular price ¥198,000 ¥0 Unit price per

High performance and ideal suspension kit that lifts your Jimny 2-2.5" / 50-60mm. Composed of selected parts, it has extremely high performance!

TANIGUCHI "MUSO-KENKA" Leaf Springs are like the dream Jimny leaf springs into which TANIGUCHI's experience and technology were put. Comfortable driving in the city, stable high-speed cruise, strong traction performance, amazing suspension travel, can drive really high speed on dirt, excellent durability, many achievements in competition… All are harmonized in high dimensions. TANIGUCHI FINAL Shock Absorbers are designed to match the TANIGUCHI leaf springs where the damping force was set by repeating the test numerous times.

Reliable operation and comfort are realized from off-road to city and high speed driving. They are the most highly evaluated Suspension for Jimny in Japan. You can choose the shackle according to your preference. Made in Japan.


TANIGUCHI suspensions are highly recommended as the best performance suspension for Jimny in Japan. They are designed from Jimny's vast data and technology by TANIGUCH's 40 years of Jimny experience. They spend a lot of time testing these products with leading test drivers and these products are manufactured with top automobile makers. It is a high-performance suspension that has improved on-road and off-road driving performance, drive quality and comfort more than the SUZUKI original ones. Also, whether the stabilizer is installed or removed, the settings are designed to provide stable, high-performance driving both on and off-road.

These leaf springs are designed for RHD (right-hand drive), but it is possible to install for LHD (left-hand drive) as well. Actually, several of our LHD customers have already installed these products without any issues. If there is a difference in height between the left and right, please consider using the included leaf spacers. However, this has only ever been tested on one model of LHD Jimny and may not work on all models. This product is designed so that the right side (driver's seat side) of RHD is slightly higher when no one is on board.



A Kit for a car with a stabilizer comes with four stabilizer correction spacers or a Kit for a car without a stabilizer.

This kit comes with Competition Leaf Springs MUSO-KENKA, FINAL Shock Absorbers, 50mm extended brake hoses, FINAL Shackles, polyurethane bushes set, front caster wedges 3°, rear caster wedges 3°, four front extended U bolts, four rear extended U bolts, and front stabilizer correction spacers (only for shackles with stabilizer).


Note; When shipped, the rear leaf springs are comprised of 4 pieces and come with 5th leaf springs as an option.
- For hardtop (van) Jimny or those who prefer a hard off-road drive, even with a soft-top (convertible), add the optional 5th leaves and make them into 5-piece leaf springs.
- Those who prefer a slightly softer ride, please use the basic 4 leaf springs without attaching the optional 5th leaf springs.
- If you want to use it on SJ40, 30, or soft-top, or if you prefer a soft ride even on the hardtop, replace the 4th leaves with the optional 5th leaves and use them as 4-piece leaf springs.



Leaf Springs
Number of leaves: 5
Width of leaves: 50mm
Leaves’ thickness: front 6/5/5/5/5, rear 6/6/5/5/5 mm (from top to bottom)



front

rear

spring rate (kgf/mm)

2.99

2.68

free camber (mm)

L130 R145

L170 R190

Shock Absorbers



front

rear

extended length (mm)

454

480

compressed length (mm)

282

300

Applicable vehicles: Jimny (1981-1995) JB31, JA51, 71, 11, SJ30, 40 RHD (right-hand drive)
Brand: TANIGUCHI
Lift height: front 50mm, rear 55mm (JA51)
Mounting: Professional (professional installation required)

About TANIGUCHI:
Our shop trusts "Off-Road Service TANIGUCHI" is Japan's best Jimny custom parts supplier. They have manufactured more than 300 Jimny products since 1983. Especially their suspensions and drivetrains are best-performance products. TANIGUCHI spends a lot of time testing its products with leading test drivers. Also, protection, interior, and exterior products have been highly evaluated for their superior quality and thoughtful construction.
