Ideal for your Jimny when lifted by less than 25mm / 1 inch. Highly recommended. This product stabilizes your Jimny’s steering!
When the Jimny is lifted, the caster angle is changed and the steering performance and stability deteriorates. Even the steering wheel does not recenter itself. This can easily be corrected by using Castor Correction Bushes because they correct the caster angle and improve the driving performance. It is almost necessary to correct the caster angle when Jimny is lifted more than 1 inch / 25mm. They are made of durable and flexible rubber.
Note 1: The correction angle of this product is 1.5°, which is ideal for Jimny when lifted by 15-25mm / 0.6-1.0 inch. When the Jimny is lifted 30mm / 1.2 inches or more, these products are good but we recommend using a set of two of these products together (two bushes for each arm).
Note 2: These products can be installed on either front radius arms or rear trailing arms. One option is to install them to the lifted Jimny's rear trailing arms. When the Jimny is lifted, the angle of the rear axle also changes, so by correcting the angle with these products, it may be possible to achieve smooth movement of the rear coil springs. Most aftermarket coil springs may be designed without careful consideration of angle correction, and these products may be effective for such cases. However, if this angle is corrected too much, the angle of the propeller shaft will become too angled, which may have some disadvantages such as causing abnormal noise. In addition, the high-performance coil springs such as those engineered by TANIGUCHI and others that our shop carries are designed in advance so that there is no need to correct the angle of the rear trailing arms. If your Jimny is lifted by such high-grade coil springs, installing this product on the rear trailing arms is not necessary.
Comes in a set of two 1.5 bushes (9,100 JPY), or a set of four 1.5 bushes. (17,800 JPY).
* Even though this product is designed for Suzuki Jimny, it may fit other vehicles. But please note it has only ever been tested on SUZUKI Jimny. The diameter is 52mm, the width is 60mm. Please refer to the size and photos.
* Separately sold Bush Press-fit Pitch Gauge and Bush Press-fitting Tools are useful for installing these bushes.
Applicable vehicles: Jimny (2018-present, 1998-2018, 1995-1998) JB74, 64, 43, 33, 23, 32, 22, 12
Brand: 4WD PROJECT
Material: Rubber
Mounting: Professional (professional installation required)
These products are engineered by 4WD PROJECT and are proven and reliable products that are also used in suspension kits from many of Japan's leading Jimny manufacturers.
About 4WD PROJECT:
4WD PROJECT is Japan's long-established 4x4 auto company. It is a small company but has been organizing rallies and 4x4 events for many years and has also participated in rallies around the world. It is a pioneer in the Japanese off-road industry.

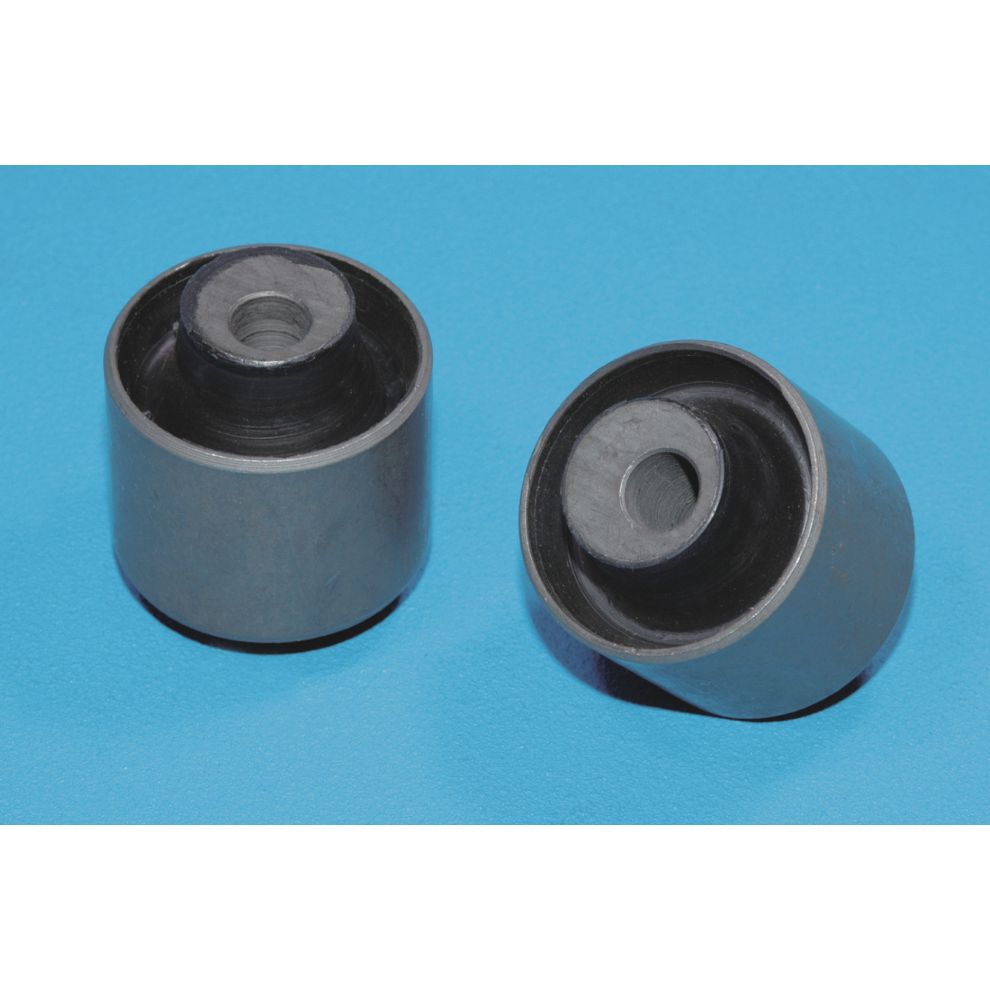

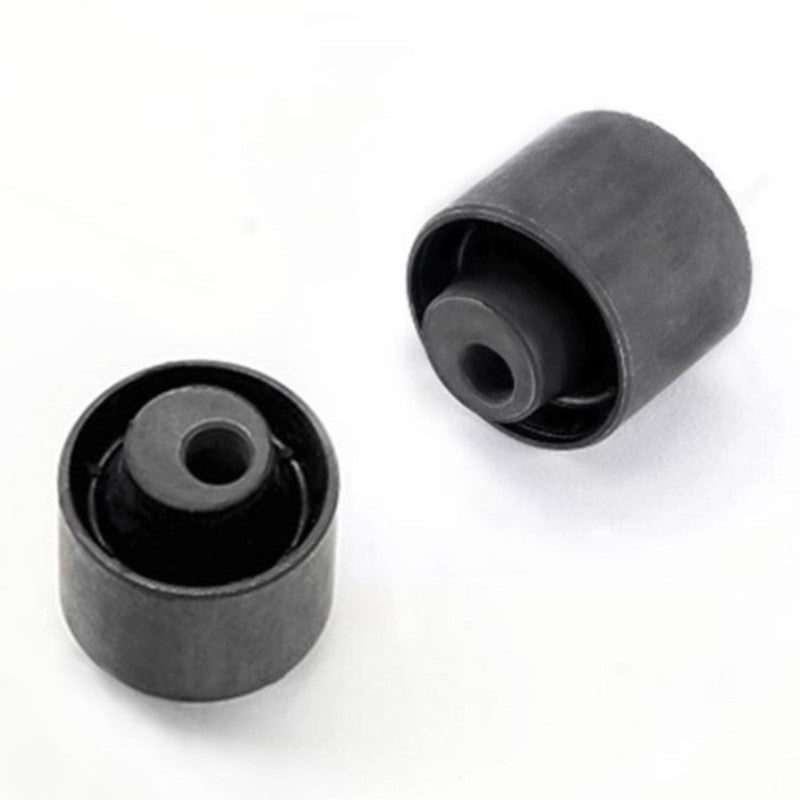

4WD PROJECT Castor Correction Bushes 1.5 for 0.8" / 20mm lifted Jimny
Ideal for your Jimny when lifted by less than 25mm / 1 inch. Highly recommended. This product stabilizes your Jimny’s steering!
When the Jimny is lifted, the caster angle is changed and the steering performance and stability deteriorates. Even the steering wheel does not recenter itself. This can easily be corrected by using Castor Correction Bushes because they correct the caster angle and improve the driving performance. It is almost necessary to correct the caster angle when Jimny is lifted more than 1 inch / 25mm. They are made of durable and flexible rubber.
Note 1: The correction angle of this product is 1.5°, which is ideal for Jimny when lifted by 15-25mm / 0.6-1.0 inch. When the Jimny is lifted 30mm / 1.2 inches or more, these products are good but we recommend using a set of two of these products together (two bushes for each arm).
Note 2: These products can be installed on either front radius arms or rear trailing arms. One option is to install them to the lifted Jimny's rear trailing arms. When the Jimny is lifted, the angle of the rear axle also changes, so by correcting the angle with these products, it may be possible to achieve smooth movement of the rear coil springs. Most aftermarket coil springs may be designed without careful consideration of angle correction, and these products may be effective for such cases. However, if this angle is corrected too much, the angle of the propeller shaft will become too angled, which may have some disadvantages such as causing abnormal noise. In addition, the high-performance coil springs such as those engineered by TANIGUCHI and others that our shop carries are designed in advance so that there is no need to correct the angle of the rear trailing arms. If your Jimny is lifted by such high-grade coil springs, installing this product on the rear trailing arms is not necessary.
Comes in a set of two 1.5 bushes (9,100 JPY), or a set of four 1.5 bushes. (17,800 JPY).
* Even though this product is designed for Suzuki Jimny, it may fit other vehicles. But please note it has only ever been tested on SUZUKI Jimny. The diameter is 52mm, the width is 60mm. Please refer to the size and photos.
* Separately sold Bush Press-fit Pitch Gauge and Bush Press-fitting Tools are useful for installing these bushes.
Applicable vehicles: Jimny (2018-present, 1998-2018, 1995-1998) JB74, 64, 43, 33, 23, 32, 22, 12
Brand: 4WD PROJECT
Material: Rubber
Mounting: Professional (professional installation required)
These products are engineered by 4WD PROJECT and are proven and reliable products that are also used in suspension kits from many of Japan's leading Jimny manufacturers.
About 4WD PROJECT:
4WD PROJECT is Japan's long-established 4x4 auto company. It is a small company but has been organizing rallies and 4x4 events for many years and has also participated in rallies around the world. It is a pioneer in the Japanese off-road industry.
