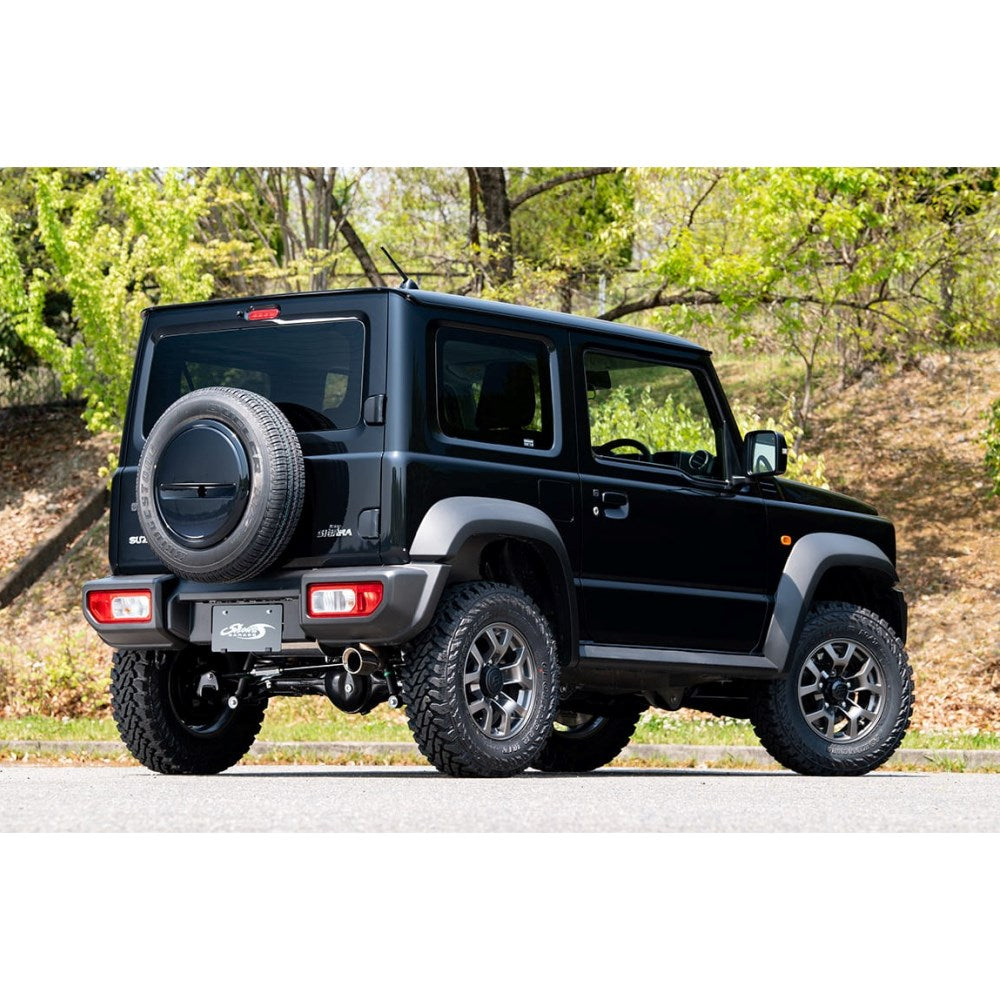

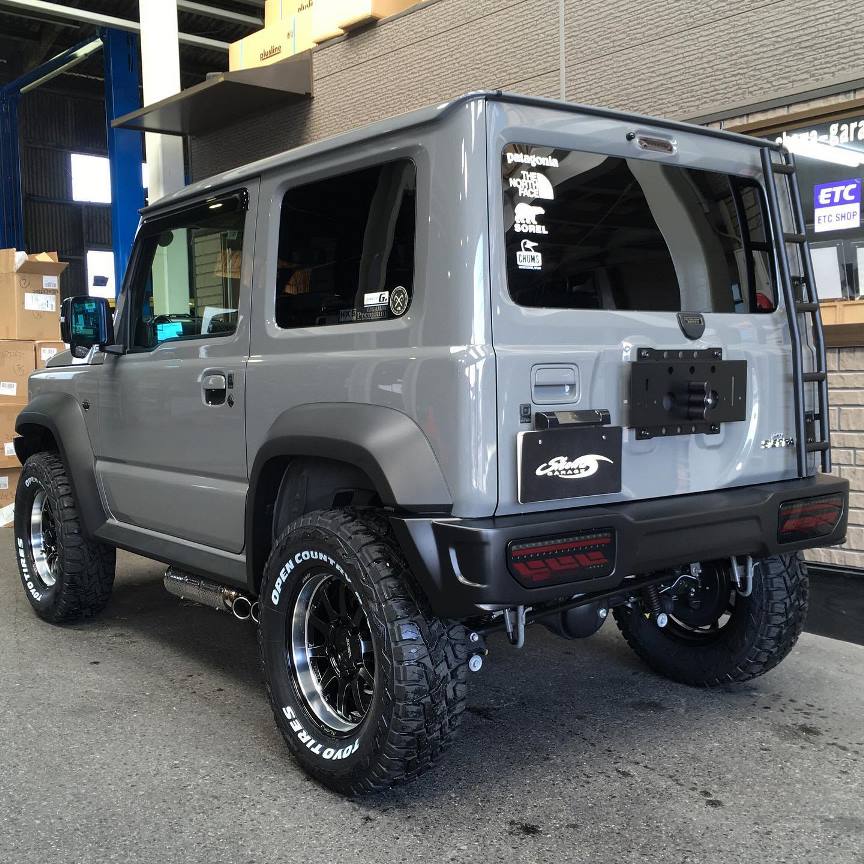

These 25-30mm / 1-inch Lift Coil Springs are great all-round coil springs for Jimny, and recommended for those who mainly drive in the city. This Kit creates good ride comfort and high driving performance. Almost the same spring rate as the SUZUKI original realizes solid and stable driving.
When used with the original shock absorbers, you can easily lift your Jimny by having only to replace the coil and you don't need many correction parts. When combined with 25mm / 1-inch Lift Shock Absorbers, suspension travel is extended and off-road performance is further improved. It is also possible combining Rear Shock Absorber Extender Brackets and Jimny's original shock absorbers. You can keep the original cross member and don't have to remove it or replace it with a Drop Cross Member. Made in Japan.
SHOWA GARAGE's suspension development concept is that a suspension with high off-road driving performance must be comfortable even on-road. First, they repeat various tests on-road to adjust the spring rate and damping force, and then finalize it with off-road tests. In city driving, it offers a comfortable ride at any speed, reduced roll, and smooth steering even in cornering. In off-road driving, the developers pursued the ideal ground contact between the tires and the ground to achieve a stable suspension. It shows stability and great performance even in rough off-roading.
Please note that these products are designed for a RHD (right-hand drive) Jimny, but it is possible to install them for LHD (left-hand drive) as well. Actually, several of our LHD customers have already installed these products without any issues. If there is a difference in height between the left and right, please consider using the coil spacers. However, this has not been tested and may not work on all models.

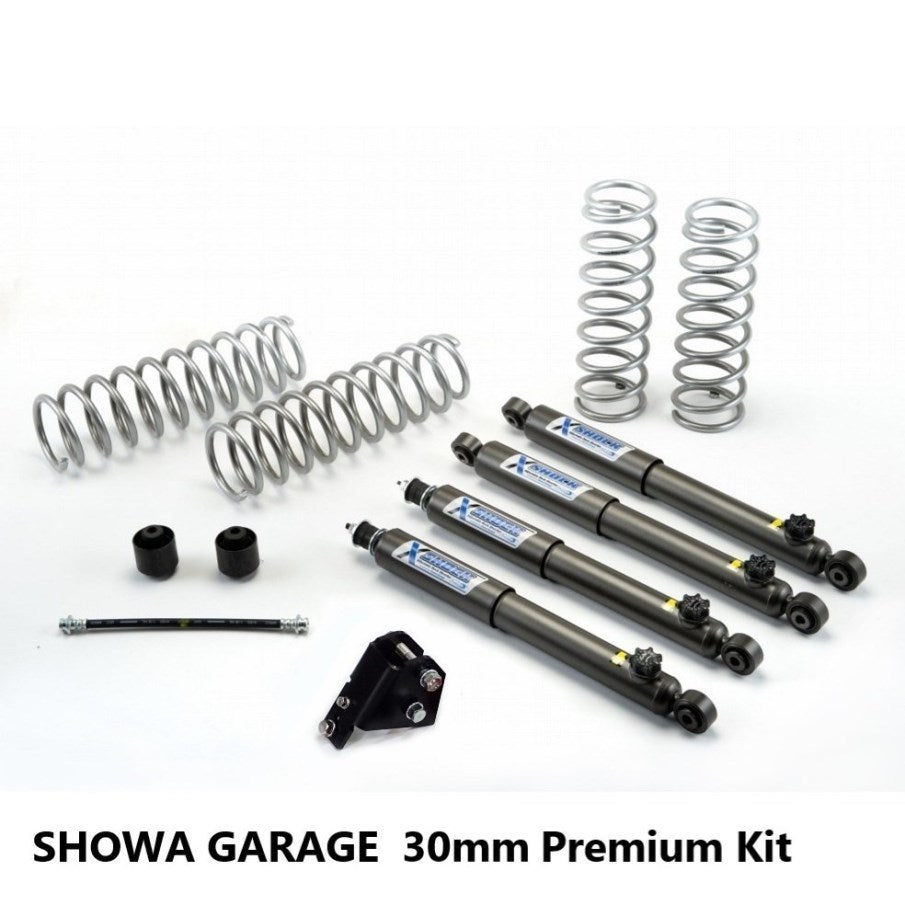

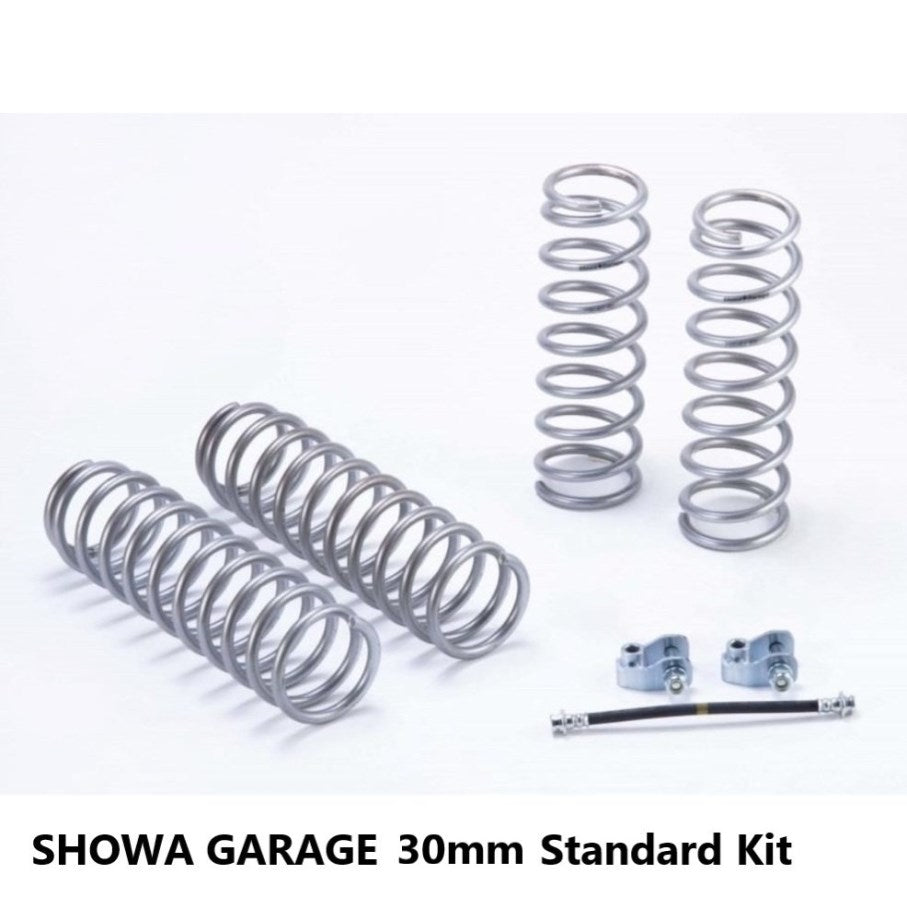

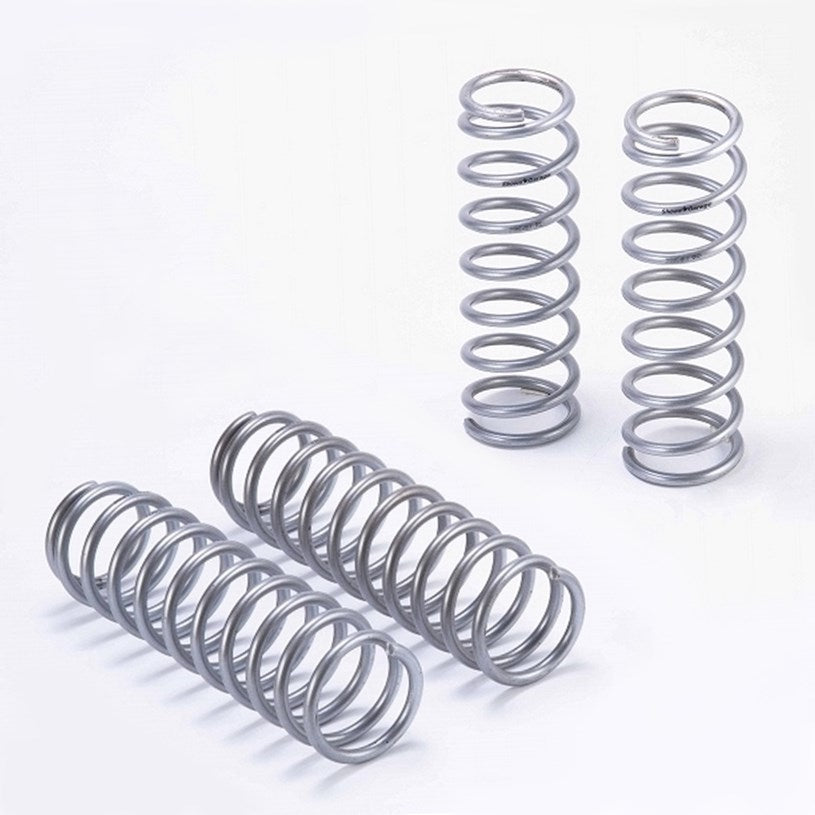

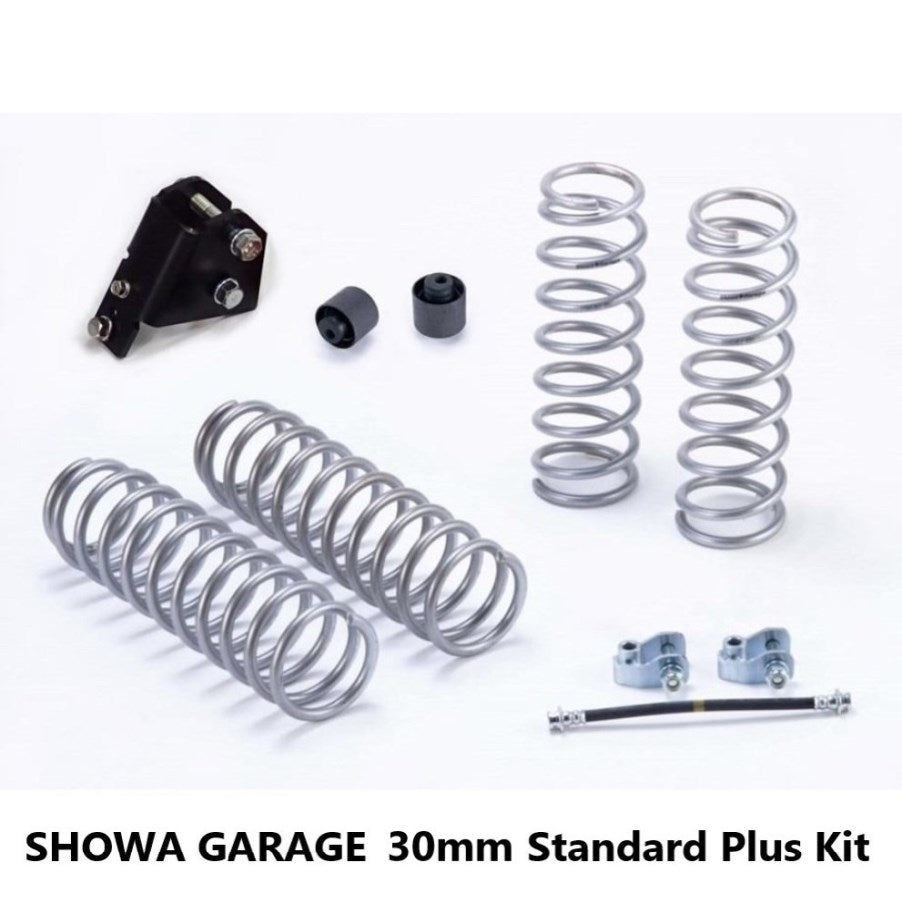

Comes in a set of four Coil Springs (35,400 JPY). 30mm Standard Suspension Kit (38,400 JPY), 30mm Standard Plus Suspension Kit (53,500 JPY), or 30mm Premium Suspension Kit (119,700 JPY) are also available.
[ Required ]
- Longer Shock Absorbers, or Rear Shock Absorber Extender Brackets
[ Recommended ]
- Rear Adjustable Panhard Rod, or Rear Panhard Rod Relocation Bracket *both recommended
- Front Adjustable Panhard Rod
- Caster Correction Bushes *highly recommended
[ Required in some cases ]
- Rear Left Extended Brake Hose (+30mm)
- Head Light Leveler Correction Stay
|
free length (mm) |
spring rate (kgf/mm) |
Original SUZUKI spring rate (kgf/mm) |
|
| FR | 388 |
2.30 | 2.1 |
|
FL |
388 |
2.30 |
2.1 |
|
RR |
330 |
2.50 |
2.33 |
|
RL |
315 |
2.50 |
2.33 |
Applicable vehicles: Jimny (2018-present) JB74 RHD (right handle drive)
Brand: SHOWA GARAGE
Lift height: 20-30mm
Mounting: Professional (professional installation required)
About SHOWA GARAGE:
SHOWA GARAGE is a manufacturer that specializes in 4x4 parts for SUZUKI small vehicles such as Jimny, EVERY, and HUSTLER. The staff has participated in off-road competitions for many years and has won many times, especially in trial competitions. They are good at fine-tuned parts which are convenient for off-road driving based on the experiences of competition.
