*** This product is the manufacturer's stock or made-to-order. The order will take one week or more to ship.

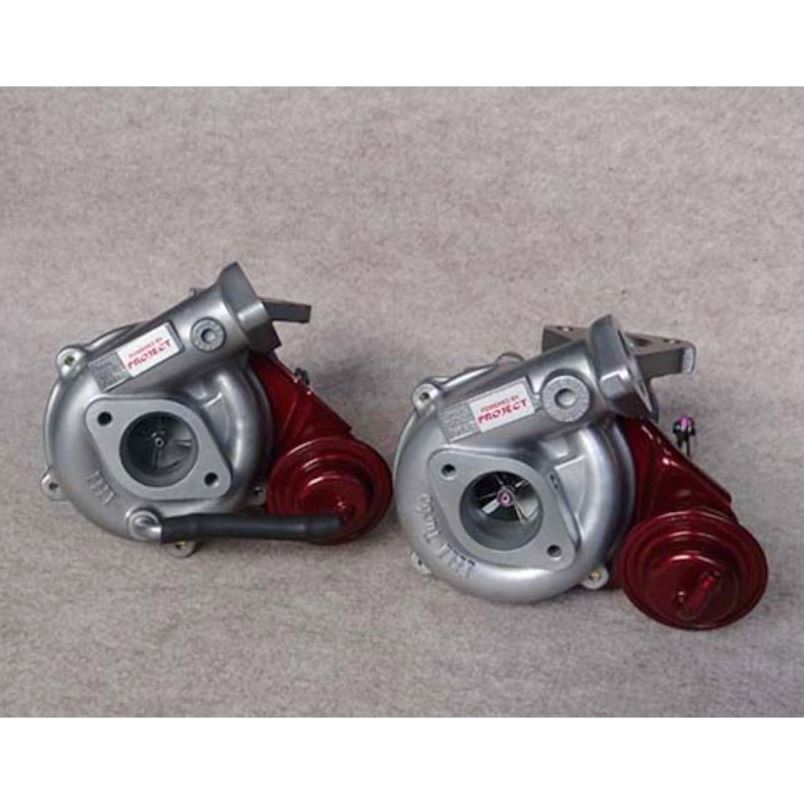

This is a re-manufactured turbocharger, but more than just a re-manufactured one. It is an upgraded one that has increased efficiency through the improved impeller. It can boost pressure up to 1.2 (120 kPa) compared to the original of about 0.75 (75 kPa). This product is designed by 4WD PROJECT, a pioneer of aftermarket turbochargers for Jimny in Japan. It is a durable product with liability and a proven track record. This product will make your engine easier and more fun to drive. Made in Japan.
[ Two models are available ]
- Model X: This model improves the output of the low and middle rpm range. It delivers a quick boost response and provides a good amount of low-end torque. Great for daily driving and general off-roading. Highly recommended.
- Model S: This model improves the output of the middle and high rpm range. Recommended for those who want to drive at high speed with a high-power engine.
[ Recommended ]
Additional modifications such as adding adaptors, fabrication, or ECU remapping are not needed. However, please be sure to consider the following additional modifications at the same time for installing this high-performance turbocharger.
- Higher Octane Gasoline: Using high octane gasoline is almost necessary. RON (Research Octane Number) 96 or higher is recommended. In that case, replacing the spark plugs with ones that have a higher heat range is recommended. In some countries and regions where gasoline is not available in RON 96 or higher, use an Octane Number as high as possible. Do not use inferior gasoline or low Octane gasoline.
- Aftermarket Blow-off Valve: The original SUZUKI blow-off valve is insufficient for this high-performance turbocharger in many cases. Especially in these generations Jimny, the performance is insufficient for the Original Suzuki ones. We highly recommend replacing it with a high-performance blow-off valve such as the TRUST Blow-off Valve.
- Boost Pressure Adjustment: Please adjust the boost pressure according to performance and conditions. 1.0 (100 kPa) is recommended. In that case, replacing the spark plugs with ones that have a higher heat range is required. In order to maintain proper boost pressure, we recommend installing a boost gauge and adjusting the boost pressure periodically. Installing a water temperature gauge is also recommended.
- Boost Limiter Disabling: You can consider disabling the boost limiter if you like. However, please note that our shop does not perform modifications to disable the boost limiter.
- Ignition Timing Adjustment: We recommend adjusting the ignition timing according to the fuel and the situation.

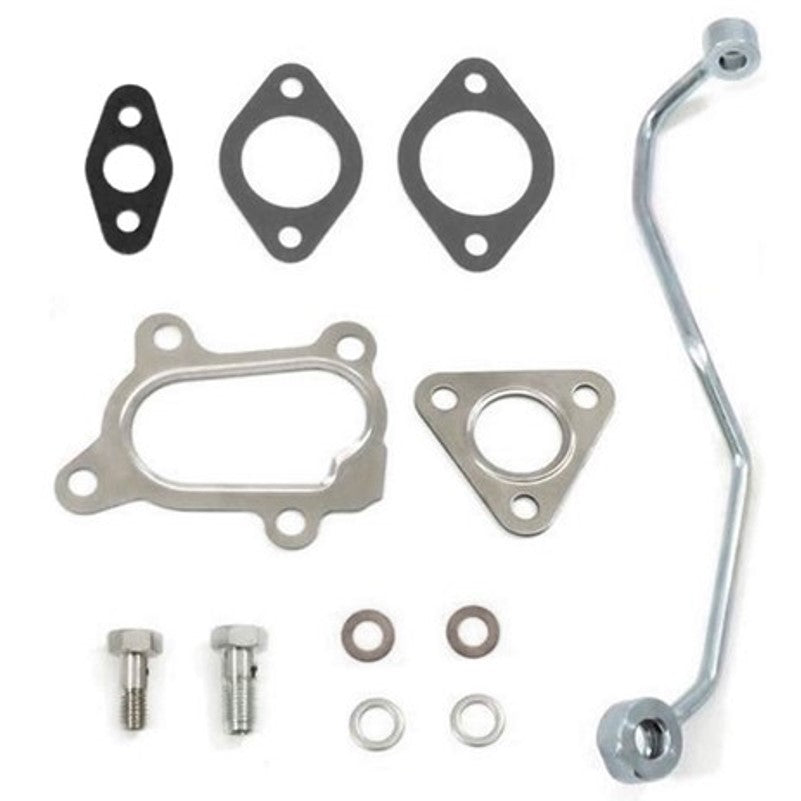

- A Gasket Kit: We recommend that you purchase the gasket kit at the same time. When installing, it is often necessary to replace the gaskets with new ones. It is also common to damage the bolts when removing the original turbocharger. The gasket kit comes with 5 gaskets, 2 bolts, 4 washers, and an oil pipe. Please note that these kits cannot be purchased separately. Also, it is only sold as a kit and cannot be sold individually.
* This product is the manufacturer's stock or made-to-order, and the order may take one week or more to ship.
* Since this is a re-manufactured product, we may be able to refund 15,000 JPY if you return the core (original product) after purchase. However, all return costs are the responsibility of the purchaser. In case of shipping from outside of Japan, import duties, taxes, and other charges may occur in Japan later. Therefore, the final return shipping cost may exceed 15,000 JPY. Therefore, we don't recommend returning the core from outside of Japan. However, please understand these risks and contact us if you wish. Please note the purchaser should return it by DHL, UPS, FedEx, or EMS within two weeks of the date received by the purchaser. Please note we may not be able to provide a refund if the returned product is defective.
Applicable vehicles: Jimny (1990-1998) JA22, 12, 11 JDM (Japan Domestic Market)
Brand: 4WD PROJECT
Mounting: Professional (professional installation required)
About 4WD PROJECT:
4WD PROJECT is Japan's long-established 4x4 auto company. It is a small company but has been organizing rallies and 4x4 events for many years and has also participated in rallies around the world. It is a pioneer in the Japanese off-road industry.
4WD PROJECT Upgraded Re-manufactured Turbocharger Jimny JDM (1990-1998)
*** This product is the manufacturer's stock or made-to-order. The order will take one week or more to ship.
This is a re-manufactured turbocharger, but more than just a re-manufactured one. It is an upgraded one that has increased efficiency through the improved impeller. It can boost pressure up to 1.2 (120 kPa) compared to the original of about 0.75 (75 kPa). This product is designed by 4WD PROJECT, a pioneer of aftermarket turbochargers for Jimny in Japan. It is a durable product with liability and a proven track record. This product will make your engine easier and more fun to drive. Made in Japan.
[ Two models are available ]
- Model X: This model improves the output of the low and middle rpm range. It delivers a quick boost response and provides a good amount of low-end torque. Great for daily driving and general off-roading. Highly recommended.
- Model S: This model improves the output of the middle and high rpm range. Recommended for those who want to drive at high speed with a high-power engine.
[ Recommended ]
Additional modifications such as adding adaptors, fabrication, or ECU remapping are not needed. However, please be sure to consider the following additional modifications at the same time for installing this high-performance turbocharger.
- Higher Octane Gasoline: Using high octane gasoline is almost necessary. RON (Research Octane Number) 96 or higher is recommended. In that case, replacing the spark plugs with ones that have a higher heat range is recommended. In some countries and regions where gasoline is not available in RON 96 or higher, use an Octane Number as high as possible. Do not use inferior gasoline or low Octane gasoline.
- Aftermarket Blow-off Valve: The original SUZUKI blow-off valve is insufficient for this high-performance turbocharger in many cases. Especially in these generations Jimny, the performance is insufficient for the Original Suzuki ones. We highly recommend replacing it with a high-performance blow-off valve such as the TRUST Blow-off Valve.
- Boost Pressure Adjustment: Please adjust the boost pressure according to performance and conditions. 1.0 (100 kPa) is recommended. In that case, replacing the spark plugs with ones that have a higher heat range is required. In order to maintain proper boost pressure, we recommend installing a boost gauge and adjusting the boost pressure periodically. Installing a water temperature gauge is also recommended.
- Boost Limiter Disabling: You can consider disabling the boost limiter if you like. However, please note that our shop does not perform modifications to disable the boost limiter.
- Ignition Timing Adjustment: We recommend adjusting the ignition timing according to the fuel and the situation.
- A Gasket Kit: We recommend that you purchase the gasket kit at the same time. When installing, it is often necessary to replace the gaskets with new ones. It is also common to damage the bolts when removing the original turbocharger. The gasket kit comes with 5 gaskets, 2 bolts, 4 washers, and an oil pipe. Please note that these kits cannot be purchased separately. Also, it is only sold as a kit and cannot be sold individually.
* This product is the manufacturer's stock or made-to-order, and the order may take one week or more to ship.
* Since this is a re-manufactured product, we may be able to refund 15,000 JPY if you return the core (original product) after purchase. However, all return costs are the responsibility of the purchaser. In case of shipping from outside of Japan, import duties, taxes, and other charges may occur in Japan later. Therefore, the final return shipping cost may exceed 15,000 JPY. Therefore, we don't recommend returning the core from outside of Japan. However, please understand these risks and contact us if you wish. Please note the purchaser should return it by DHL, UPS, FedEx, or EMS within two weeks of the date received by the purchaser. Please note we may not be able to provide a refund if the returned product is defective.
Applicable vehicles: Jimny (1990-1998) JA22, 12, 11 JDM (Japan Domestic Market)
Brand: 4WD PROJECT
Mounting: Professional (professional installation required)
About 4WD PROJECT:
4WD PROJECT is Japan's long-established 4x4 auto company. It is a small company but has been organizing rallies and 4x4 events for many years and has also participated in rallies around the world. It is a pioneer in the Japanese off-road industry.
