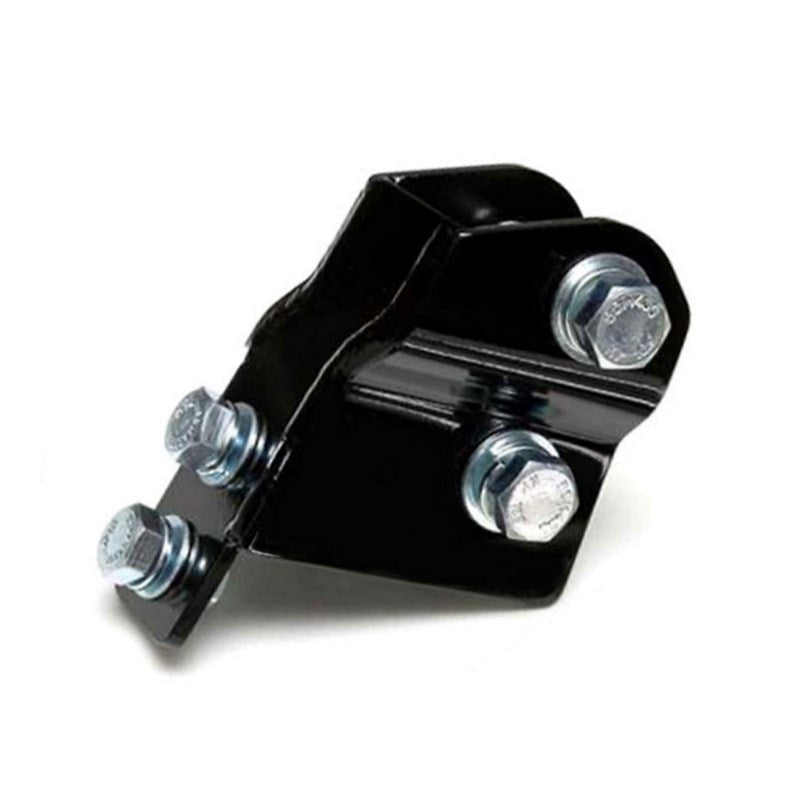

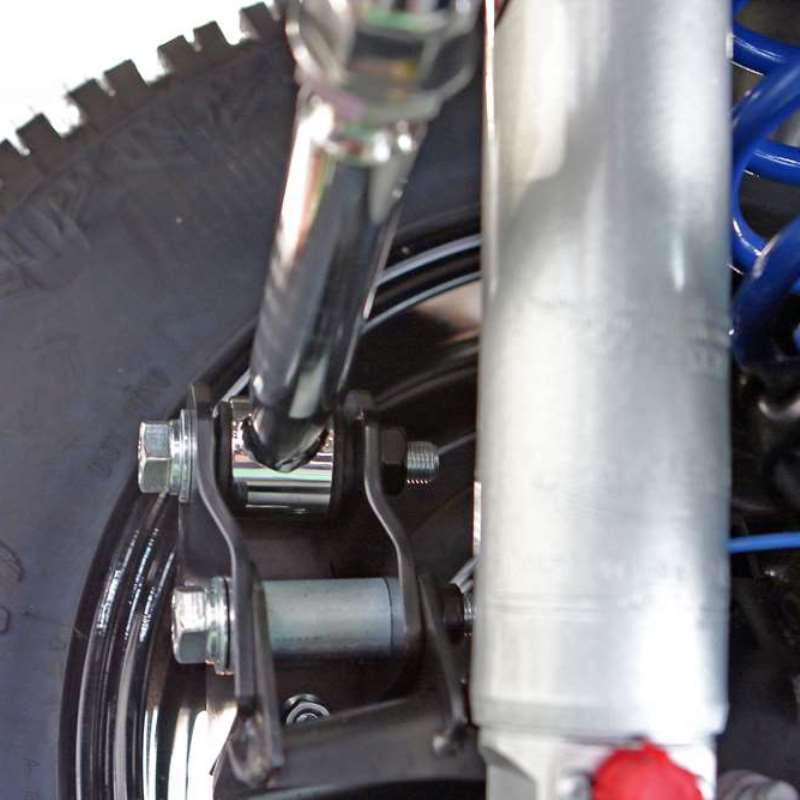

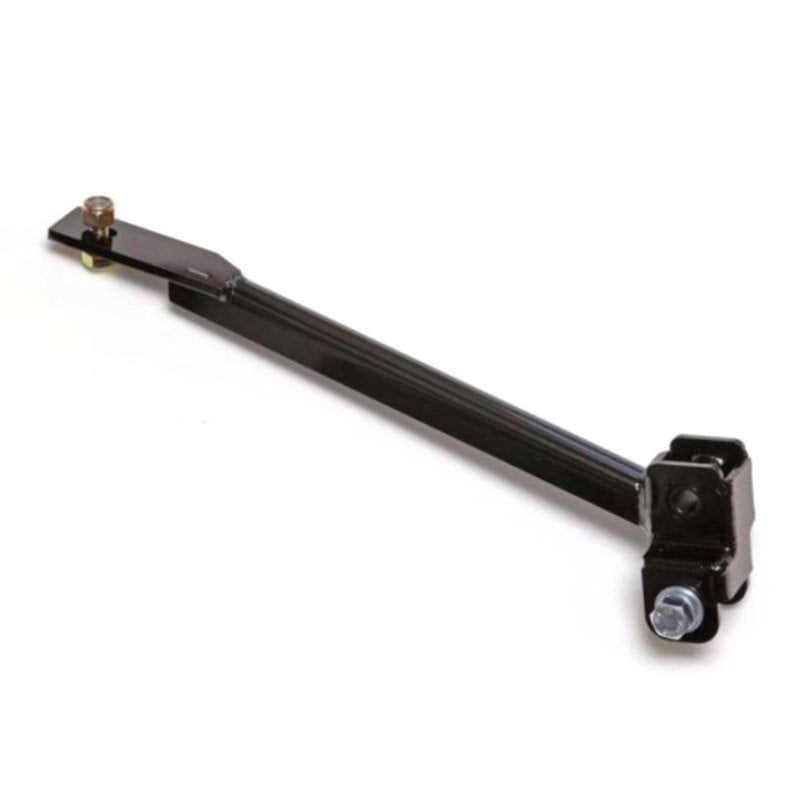

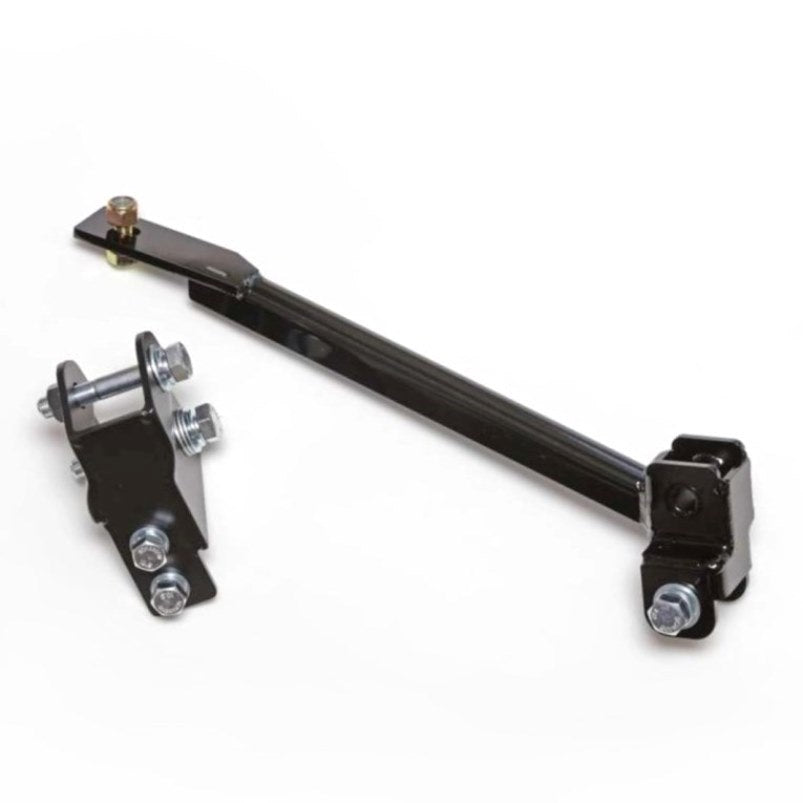

This Kit is great for a Jimny that has been lifted more than 3 inches. Especially, it is ideal for a Jimny that has been lifted more than 4 inches or has been installed with thicker rear shock absorbers. This Kit comes with a bracket to be installed to the frame side and brackets to be installed to the axle side. It creates a smooth, stable ride by correcting the mounting position of the rear Panhard rod by a total of 95mm height. It is also recommended when using thicker shock absorbers whose diameters are more than 30mm since it prevents the Panhard rod from hitting the shock absorber by relocating the mounting position 12mm backward.

When your Jimny is lifted, the use of the Adjustable Panhard Rod eliminates lateral displacement. But this alone does not solve the angle problem. A Panhard rod should ideally be at an angle close to horizontal. However, if the Panhard rod has become too angled by lifting, the vehicle's body sways not only up and down but also left and right when driving on bumpy roads. It also causes various problems such as unstable behavior when rolling and applying force in the direction in which the body twists during acceleration. Especially in the rear Panhard rod, these problems appear conspicuously. This product solves this angle problem by correcting the mounting position of the rear Panhard rod by a total of 95mm and creates a smooth, stable ride even in various situations. Drilling is required.

Note 1:
In the following cases, this kit is recommended to prevent touching between the rear Panhard rod and rear shock absorbers. It is almost necessary in some cases.

1, Your Jimny has been lifted more than 4 inches (100mm).
2, Thicker coil springs have been installed.
3, Thicker shock absorbers have been installed.
4, The lower mounting position of the shock absorber has been relocated to the rear using a spacer, etc.

Note 2: It is OK for lifted Jimny to use only this Kit in some cases. However, to achieve the highest results of proper left and right alignment for any lifted Jimny, we recommend using both this kit and the Adjustable Panhard Rod regardless of the amount of lift.

Applicable vehicles: Jimny (2018-present) JB74, 64
Brand: MASTERPIECE
Material: Steel
Color: Black painted finish
Mounting: Professional (professional installation required)

About MASTERPIECE:
A long-established Japanese 4WD parts supplier that has developed many aftermarket off-road vehicle products mainly suspension parts. They are developing parts for many off-road vehicles such as Land Cruiser, but they have also been enthusiastic about developing Jimny parts for many years. Especially their suspension parts for hard off-road adventurers have great performance even for on-road and regular city driving, and they are loved by many enthusiasts in Japan.
