TANIGUCHI 75mm Lift Premium Suspension Kit Jimny JB43 (2000-2018)
TANIGUCHI 75mm Lift Premium Suspension Kit Jimny JB43 (2000-2018)
TANIGUCHI 75mm Lift Premium Suspension Kit Jimny JB43 (2000-2018)
TANIGUCHI 75mm Lift Premium Suspension Kit Jimny JB43 (2000-2018)
TANIGUCHI 75mm Lift Premium Suspension Kit Jimny JB43 (2000-2018)
TANIGUCHI 75mm Lift Premium Suspension Kit Jimny JB43 (2000-2018)

A Kit with Panhard rods and some more correction parts added to the Standard Plus Kit. Recommended for those who are looking for even higher levels of driving performance.

This 3" / 75mm lift suspension kit, specifically designed for the 1300 Jimny JB43 (2000-2018) shows the best performance. Excellent stability and comfort are realized from off-road to city driving. Computer simulations, off-road, high-speed, and city driving tests were conducted numerous times. This is a very popular lift suspension kit for Jimny in Japan. Made in Japan.

In a normal situation, the recommended damping settings are 4. Lower settings such as 2-3 are recommended for off-road driving, or if you like soft and comfortable driving. Higher settings such as 5-6 are recommended if a heavy roof rack is installed, or you wish to suppress roll and seek solid, sporty, and stable driving. However, some people prefer a firmer ride off-road, so it's up to you. We don't recommend 1 or 8, so please set them between 2 and 7.

TANIGUCHI suspensions are highly recommended as the best performance suspension for Jimny in Japan. They are designed from Jimny's vast data and technology by TANIGUCH's 40 years of Jimny experience. They spend a lot of time testing these products with leading test drivers and these products are manufactured with top automobile makers. It is a high-performance suspension that has improved on-road and off-road driving performance, drive quality, and comfort more than the SUZUKI original ones.

* Please note that these products are designed for a RHD (right-hand drive) Jimny, but it is possible to install them for a LHD (left-hand drive) as well except Front Panhard Pod. Actually, several of our LHD customers have already installed these products without any issues. However, if this Front Rod is installed on LHD, it may touch the differential.
* If there is a difference in height between the left and right, please consider using the coil spacers. However, this has not been tested and may not work on all models. This product is designed so that the right side (driver's seat side) of RHD is slightly higher when no one is on board.

* Please choose Fixed Shock Absorbers, or Adjustable Shock Absorbers (+17,500 JPY).

A) 75mm Lift Standard Suspension Kit (112,100 - 129,600 JPY) includes Coil Springs, Shock Absorbers, and 50mm Extended Brake Hoses.
B) 75mm Standard Plus Suspension Kit (142,300 - 159,800 JPY) includes Standard Kit plus two of Caster Correction Bushes 5.0, Rear Panhard Rod Relocation Bracket, and Offset Stabilizer Relocation Bracket.

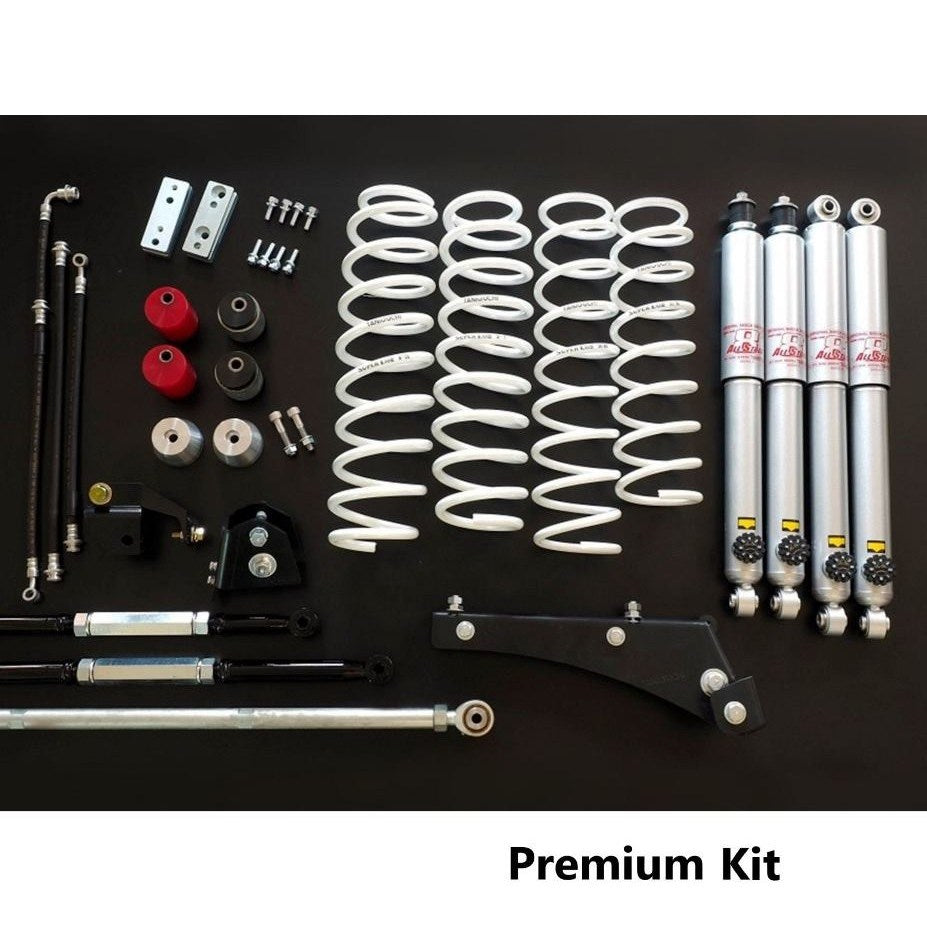

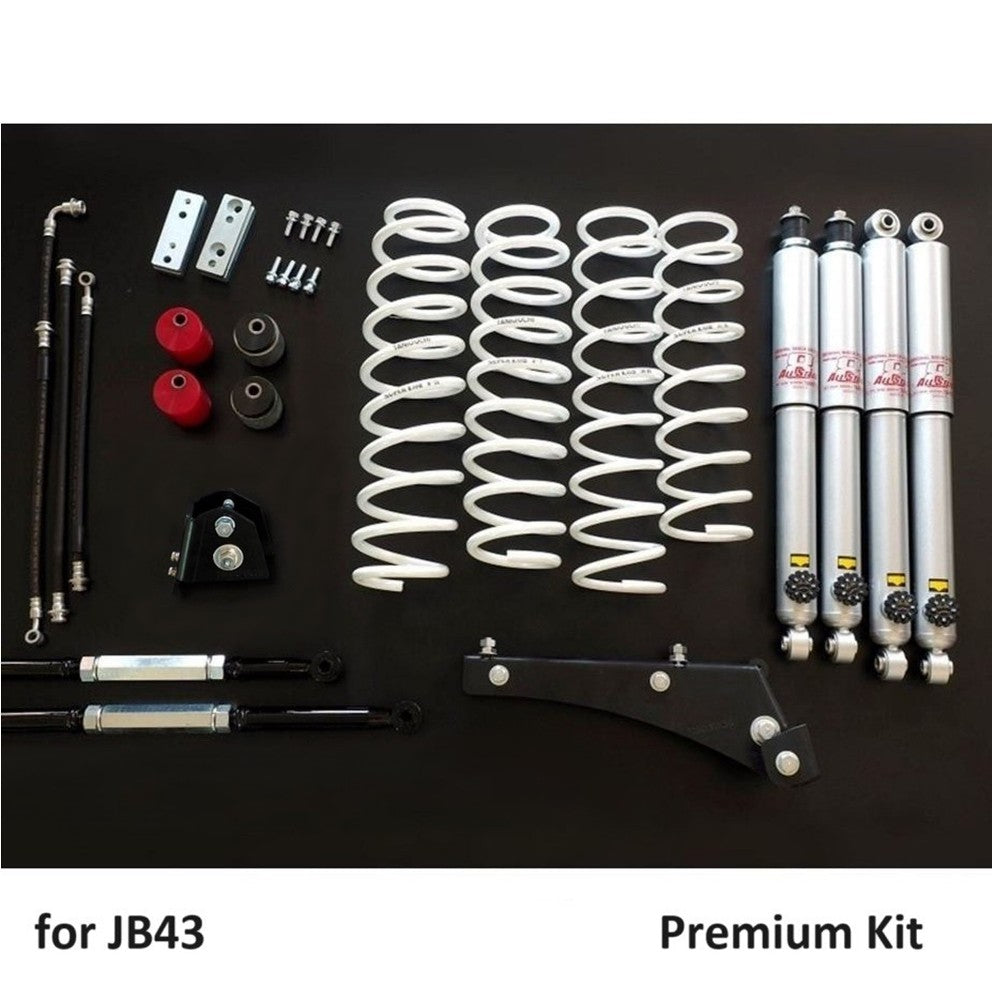

C) 75mm Lift Premium Suspension Kit (256,100 - 273,600 JPY) includes Standard Plus Kit plus two of Caster Correction Bushes 2.5, Rear Adjustable Panhard Rods, Front Suspension and Steering Correction Kit, and Rear Panhard Rod Offset Relocation Bracket.

[ Required in some cases ]
- Propeller shaft spacer
- Extended bump stop (X-large Bump Stop or Bump Stop Block etc.)



Coil Springs

free length (mm)

spring rate (N/mm)

FR 432
23.5

FL

413

23.5

RR

408

23.4

RL

369

23.4

Adjustable Shock Absorbers



front

rear

extended length (mm)

475

525

compressed length (mm)

295

327

Fixed Shock Absorbers



front

rear

extended length (mm)

480

525

compressed length (mm)

296

324

Applicable vehicles: Jimny (2000-2018) JB43 RHD (right handle drive)
Brand: TANIGUCHI
Lift height: front 75mm, rear 75mm
Mounting: Professional (professional installation required)

About TANIGUCHI:
Our shop trusts "Off-Road Service TANIGUCHI" is Japan's best Jimny custom parts supplier. They have manufactured more than 300 Jimny products since 1983. Especially their suspensions and drivetrains are best-performance products. TANIGUCHI spends a lot of time testing its products with leading test drivers. Also, protection, interior, and exterior products have been highly evaluated for their superior quality and thoughtful construction.

TANIGUCHI 75mm Lift Premium Suspension Kit Jimny JB43 (2000-2018)

Regular price ¥256,100 ¥0 Unit price per

A Kit with Panhard rods and some more correction parts added to the Standard Plus Kit. Recommended for those who are looking for even higher levels of driving performance.

This 3" / 75mm lift suspension kit, specifically designed for the 1300 Jimny JB43 (2000-2018) shows the best performance. Excellent stability and comfort are realized from off-road to city driving. Computer simulations, off-road, high-speed, and city driving tests were conducted numerous times. This is a very popular lift suspension kit for Jimny in Japan. Made in Japan.

In a normal situation, the recommended damping settings are 4. Lower settings such as 2-3 are recommended for off-road driving, or if you like soft and comfortable driving. Higher settings such as 5-6 are recommended if a heavy roof rack is installed, or you wish to suppress roll and seek solid, sporty, and stable driving. However, some people prefer a firmer ride off-road, so it's up to you. We don't recommend 1 or 8, so please set them between 2 and 7.

TANIGUCHI suspensions are highly recommended as the best performance suspension for Jimny in Japan. They are designed from Jimny's vast data and technology by TANIGUCH's 40 years of Jimny experience. They spend a lot of time testing these products with leading test drivers and these products are manufactured with top automobile makers. It is a high-performance suspension that has improved on-road and off-road driving performance, drive quality, and comfort more than the SUZUKI original ones.

* Please note that these products are designed for a RHD (right-hand drive) Jimny, but it is possible to install them for a LHD (left-hand drive) as well except Front Panhard Pod. Actually, several of our LHD customers have already installed these products without any issues. However, if this Front Rod is installed on LHD, it may touch the differential.
* If there is a difference in height between the left and right, please consider using the coil spacers. However, this has not been tested and may not work on all models. This product is designed so that the right side (driver's seat side) of RHD is slightly higher when no one is on board.

* Please choose Fixed Shock Absorbers, or Adjustable Shock Absorbers (+17,500 JPY).

A) 75mm Lift Standard Suspension Kit (112,100 - 129,600 JPY) includes Coil Springs, Shock Absorbers, and 50mm Extended Brake Hoses.
B) 75mm Standard Plus Suspension Kit (142,300 - 159,800 JPY) includes Standard Kit plus two of Caster Correction Bushes 5.0, Rear Panhard Rod Relocation Bracket, and Offset Stabilizer Relocation Bracket.
C) 75mm Lift Premium Suspension Kit (256,100 - 273,600 JPY) includes Standard Plus Kit plus two of Caster Correction Bushes 2.5, Rear Adjustable Panhard Rods, Front Suspension and Steering Correction Kit, and Rear Panhard Rod Offset Relocation Bracket.

[ Required in some cases ]
- Propeller shaft spacer
- Extended bump stop (X-large Bump Stop or Bump Stop Block etc.)



Coil Springs

free length (mm)

spring rate (N/mm)

FR 432
23.5

FL

413

23.5

RR

408

23.4

RL

369

23.4

Adjustable Shock Absorbers



front

rear

extended length (mm)

475

525

compressed length (mm)

295

327

Fixed Shock Absorbers



front

rear

extended length (mm)

480

525

compressed length (mm)

296

324

Applicable vehicles: Jimny (2000-2018) JB43 RHD (right handle drive)
Brand: TANIGUCHI
Lift height: front 75mm, rear 75mm
Mounting: Professional (professional installation required)

About TANIGUCHI:
Our shop trusts "Off-Road Service TANIGUCHI" is Japan's best Jimny custom parts supplier. They have manufactured more than 300 Jimny products since 1983. Especially their suspensions and drivetrains are best-performance products. TANIGUCHI spends a lot of time testing its products with leading test drivers. Also, protection, interior, and exterior products have been highly evaluated for their superior quality and thoughtful construction.
