TANIGUCHI Rear Panhard Rod Relocation Bracket for Jimny
TANIGUCHI Rear Panhard Rod Relocation Bracket for Jimny
TANIGUCHI Rear Panhard Rod Relocation Bracket for Jimny
TANIGUCHI Rear Panhard Rod Relocation Bracket for Jimny
TANIGUCHI Rear Panhard Rod Relocation Bracket for Jimny
TANIGUCHI Rear Panhard Rod Relocation Bracket for Jimny

This is a popular product that improves the ride comfort for your lifted Jimny! This product is not always necessary for the lifted Jimny but is highly recommended for more than 2-inch / 50mm lifted Jimnys. We recommend it even for 1-inch / 25mm lifted Jimnys. It is also very effective in high speed off-road driving.

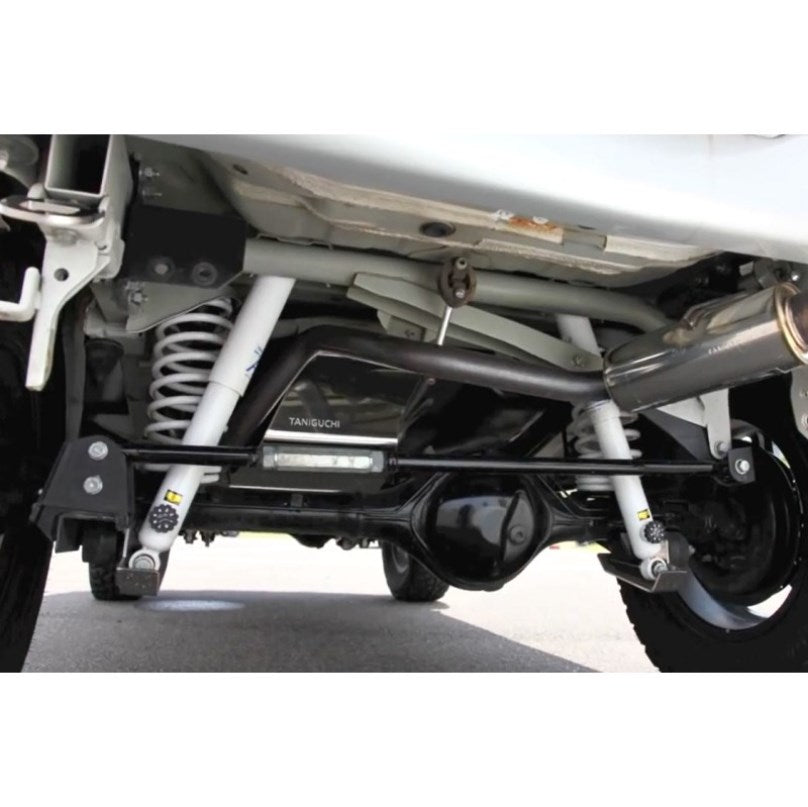

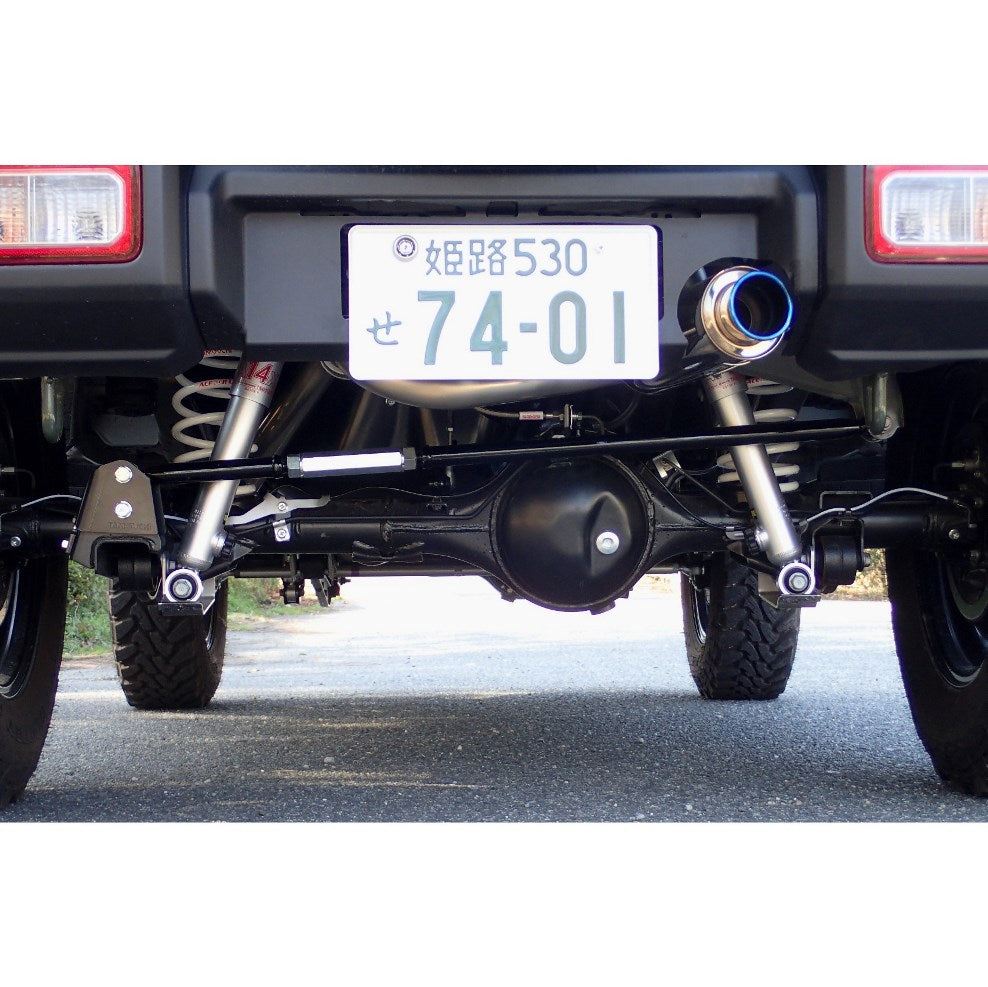

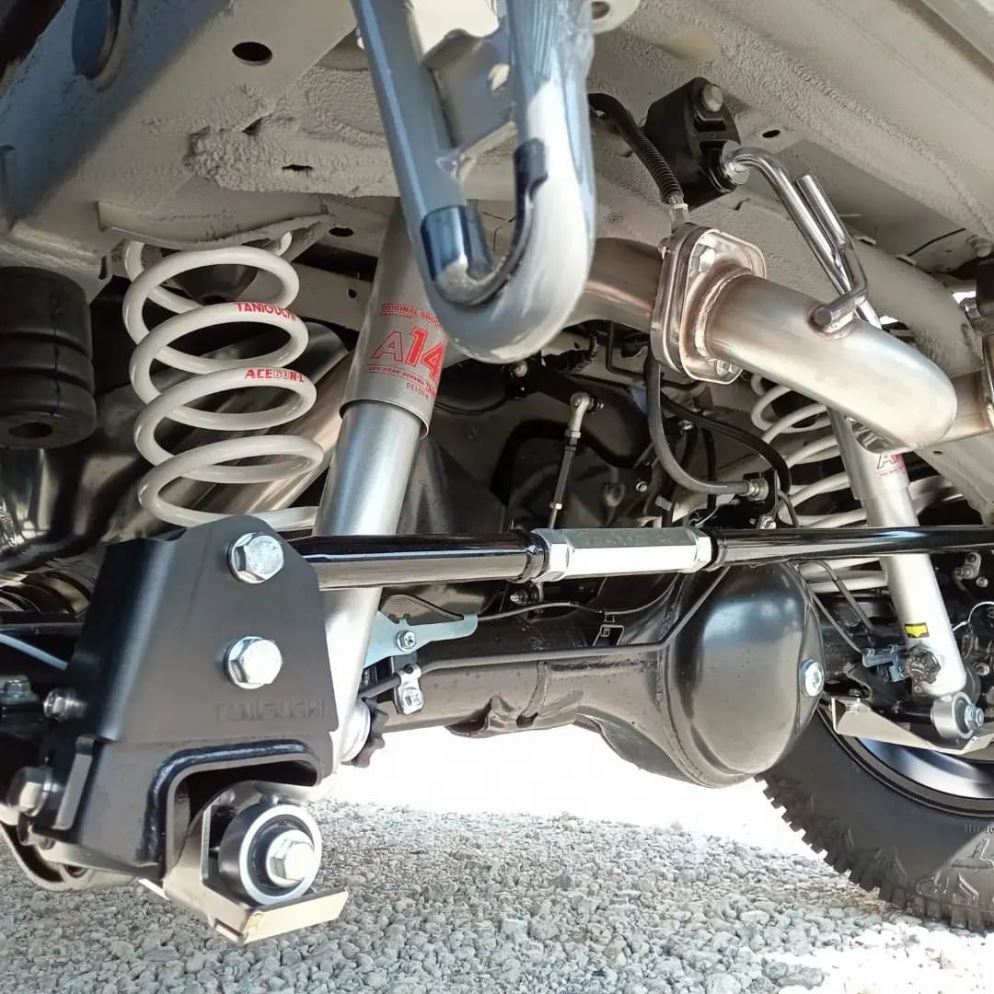

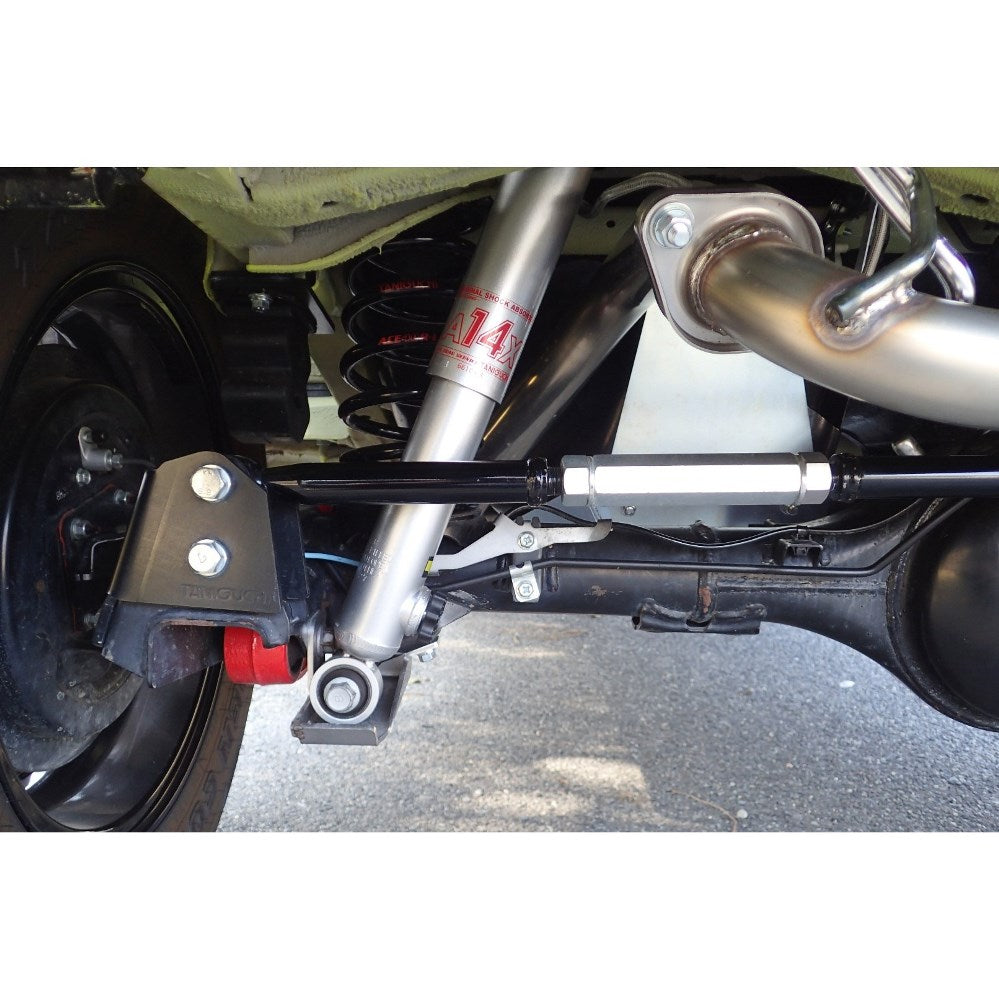

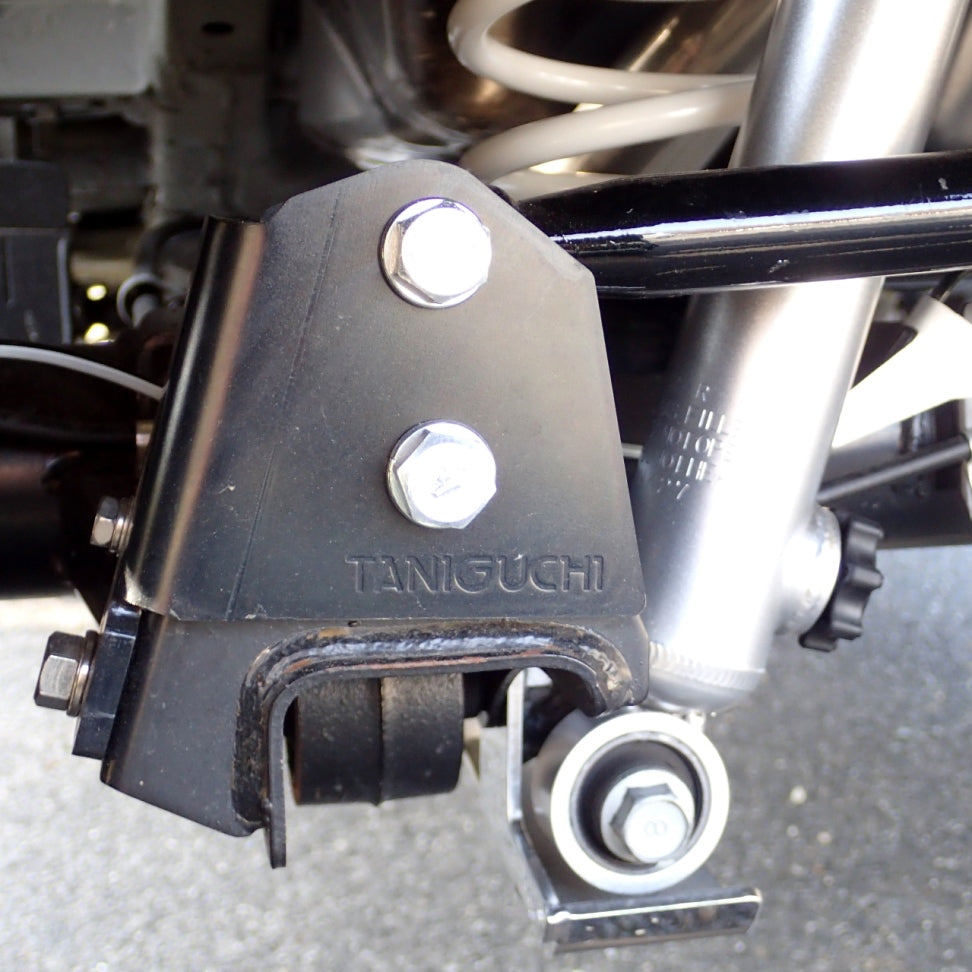

When your Jimny is lifted, the use of the Adjustable Panhard Rod eliminates lateral displacement. But this alone does not solve the angle problem. A Panhard rod should ideally be at an angle close to horizontal. However, if the Panhard rod has become too angled by lifting, the vehicle's body sways not only up and down but also left and right when driving on bumpy roads. It also causes various problems such as unstable behavior when rolling and applying force in the direction in which the body twists during acceleration. Especially in the rear Panhard rod, these problems appear conspicuously. This product solves this angle problem by correcting the mounting position of the rear Panhard rod by about 40mm upwards and creates a smooth, stable ride even in various situations.

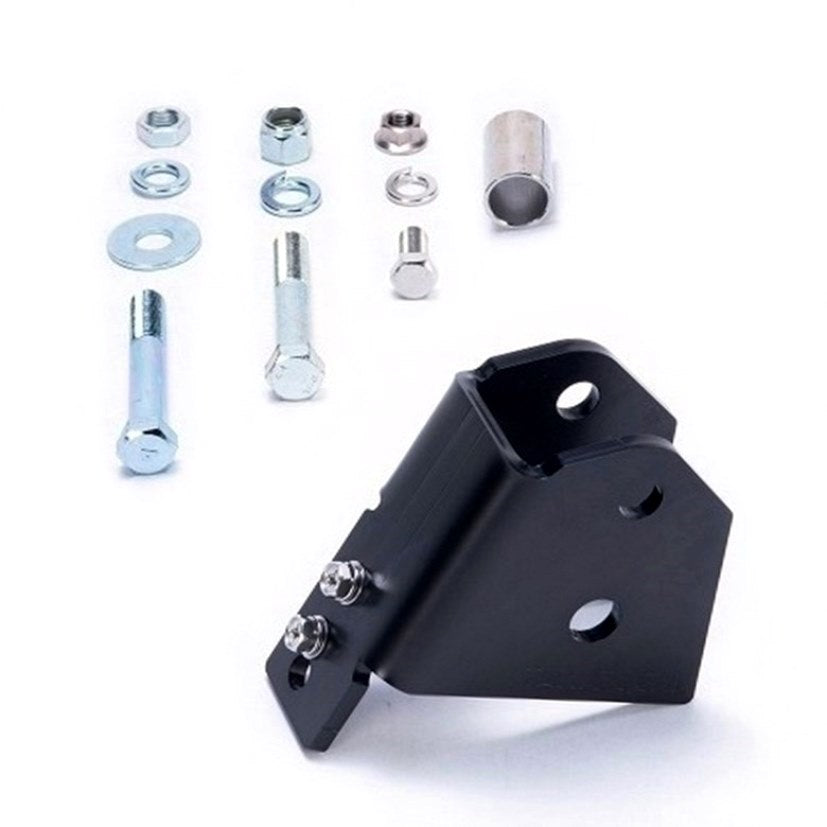

The official name of this product is "Rear Panhard Rod Correction Bracket V (five)". TANIGUCHI has been manufacturing these brackets with improvements since 1995 and this is the fifth edition. This is a reliable and popular product. Drilling or cutting are not required. Made in Japan.

[ Recommended installation ]
-- JB74, 64 (2018-present) --
1, Lifted 20-60mm: Using this bracket.
2, Lifted 60mm or more: Using both this bracket with the Adjustable Panhard Rod.

-- JB43, 33, 23 (1998-2018) --
1, Lifted 20-60mm: Using this bracket.
2, Lifted 60-75mm: Using this bracket together with the Offset Bracket.
3, Lifted 75mm or more: Using both this bracket and the Offset Bracket with the Adjustable Panhard Rod.

Note: It is OK for lifted Jimny to use only this Bracket in some cases. However, to achieve the highest results of proper left and right alignment for any lifted Jimny, we recommend using both these relocation brackets and the Adjustable Panhard Rod regardless of the amount of lift.

* Suspension Correction Kit is also available.

Applicable vehicles: Jimny (2018-present, 1998-1998) JB74, 64, 43, 33, 23
Brand: TANIGUCHI
Material: 6mm steel
Color: Black plating finish
Mounting: Moderate (some experience and tools required)

About TANIGUCHI:
Our shop trusts "Off-Road Service TANIGUCHI" is Japan's best Jimny custom parts supplier. They have manufactured more than 300 Jimny products since 1983. Especially their suspensions and drivetrains are best-performance products. TANIGUCHI spends a lot of time testing its products with leading test drivers. Also, protection, interior, and exterior products have been highly evaluated for their superior quality and thoughtful construction.
