Great price and high-quality, all-round suspension kit recommended for those who want to lift their Jimny height more!
Plating finish steel Shackles and stainless Shackles are available. If you are looking for even better driving performance, we recommend TANIGUCHI “MUSO-KENKA” Standard Plus Suspension Kit or Premium Suspension Kit. Made in Japan.
TANIGUCHI suspensions are highly recommended as the best performance suspension for Jimny in Japan. They are designed from Jimny's vast data and technology by TANIGUCH's 40 years of Jimny experience. They spend a lot of time testing these products with leading test drivers and these products are manufactured with top automobile makers. It is a high-performance suspension that has improved on-road and off-road driving performance, drive quality and comfort more than the SUZUKI original ones. Also, whether the stabilizer is installed or removed, the settings are designed to provide stable, high-performance driving both on and off-road.

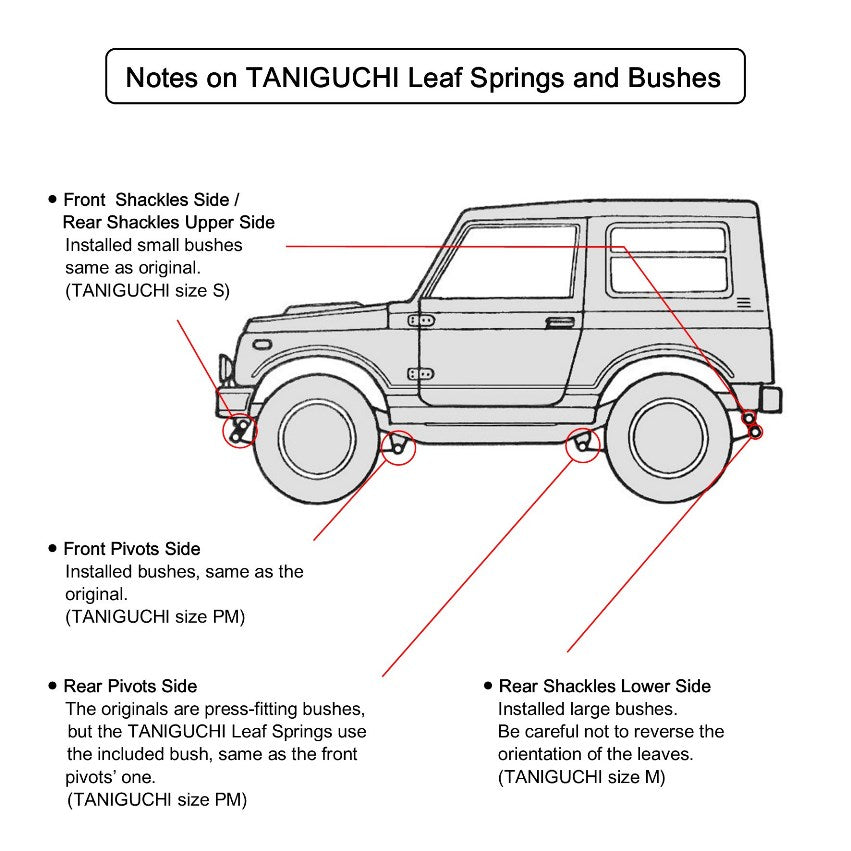

These leaf springs are designed for RHD (right-hand drive), but it is possible to install for LHD (left-hand drive) as well. Actually, several of our LHD customers have already installed these products without any issues. If there is a difference in height between the left and right, please consider using the included leaf spacers. However, this has only ever been tested on one model of LHD Jimny and may not work on all models. This product is designed so that the right side (driver's seat side) of RHD is slightly higher when no one is on board.

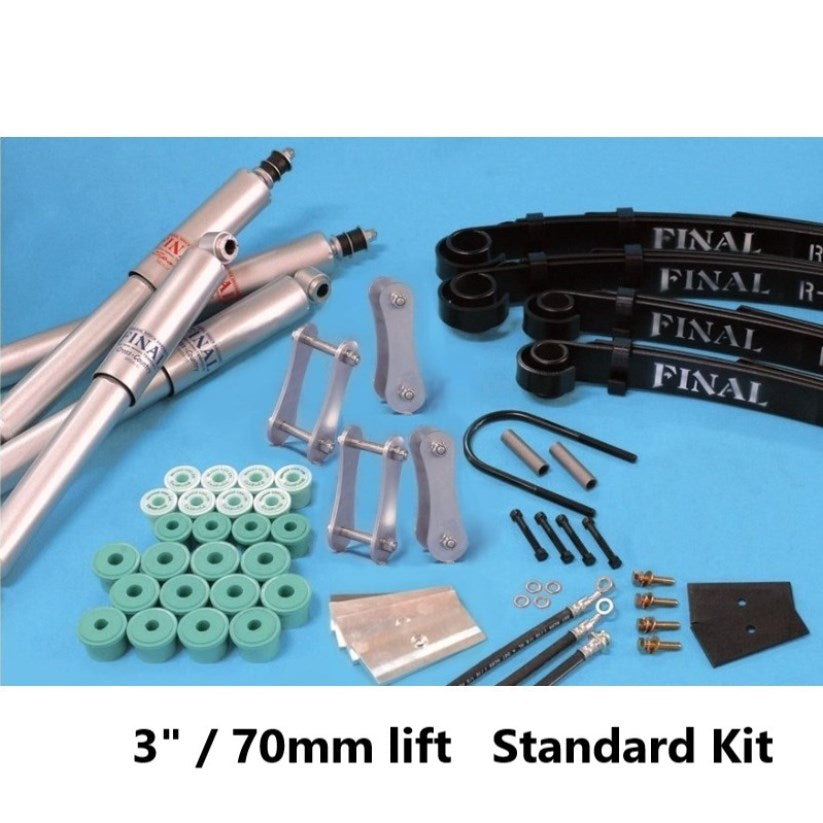

This kit comes with FINAL Leaf Springs, FINAL Shock Absorbers, 50mm extended brake hoses, Round Shackles +50mm, carbon and polyurethane bushes set, front caster wedges 3°, and Rear caster wedges 3°.

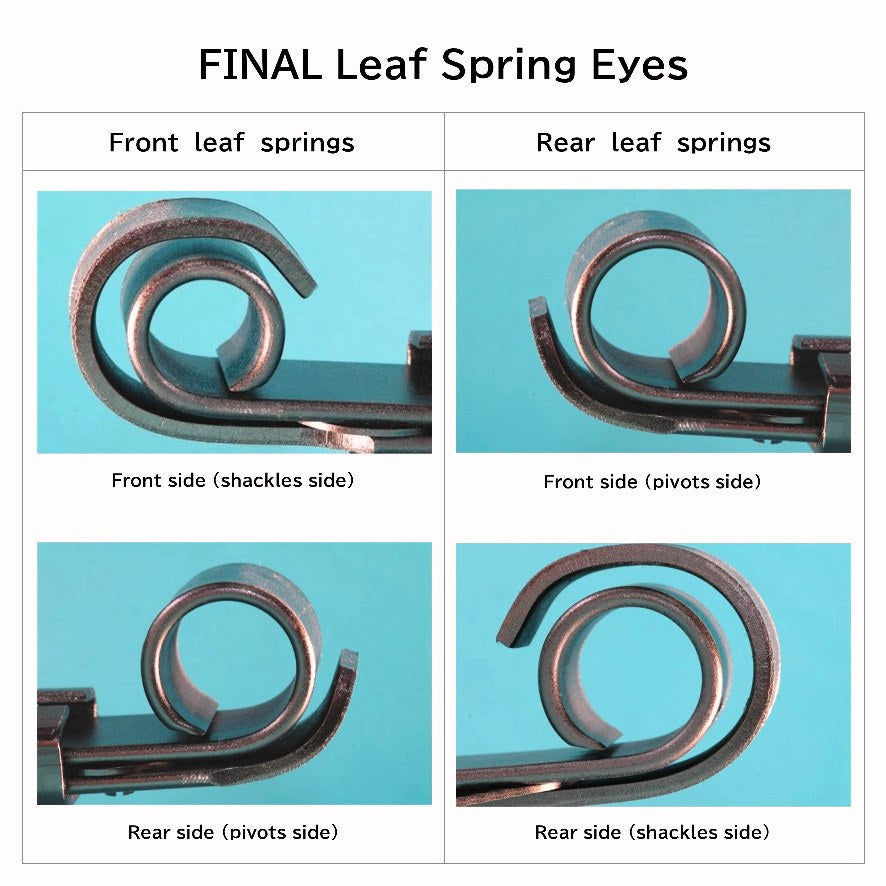

Leaf Springs
Number of leaves: front 4, rear 5
Width of leaves: 50mm
Leaves’ thickness: front 6/6/6/5, rear 6/L5,R6/5/5/5 mm (from top to bottom)
|
|
front |
rear |
|
spring rate (kgf/mm) |
L3.25 R3.25 |
L2.34 R2.64 |
|
free camber (mm) |
L115 R130 |
L180 R195 |
Shock Absorbers
|
|
front |
rear |
|
extended length (mm) |
454 |
480 |
|
compressed length (mm) |
282 |
300 |
Applicable vehicles: Jimny (1981-1995) JB31, JA51, 71, 11, SJ30, 40 RHD (right-hand drive)
Brand: TANIGUCHI
Lift height: front 65mm, rear 70mm (JA51)
Mounting: Professional (professional installation required)
About TANIGUCHI:
Our shop trusts "Off-Road Service TANIGUCHI" is Japan's best Jimny custom parts supplier. They have manufactured more than 300 Jimny products since 1983. Especially their suspensions and drivetrains are best-performance products. TANIGUCHI spends a lot of time testing its products with leading test drivers. Also, protection, interior, and exterior products have been highly evaluated for their superior quality and thoughtful construction.
TANIGUCHI 3" / 70mm Lift Standard Suspension Kit Jimny (1981-1995)
Great price and high-quality, all-round suspension kit recommended for those who want to lift their Jimny height more!
Plating finish steel Shackles and stainless Shackles are available. If you are looking for even better driving performance, we recommend TANIGUCHI “MUSO-KENKA” Standard Plus Suspension Kit or Premium Suspension Kit. Made in Japan.
TANIGUCHI suspensions are highly recommended as the best performance suspension for Jimny in Japan. They are designed from Jimny's vast data and technology by TANIGUCH's 40 years of Jimny experience. They spend a lot of time testing these products with leading test drivers and these products are manufactured with top automobile makers. It is a high-performance suspension that has improved on-road and off-road driving performance, drive quality and comfort more than the SUZUKI original ones. Also, whether the stabilizer is installed or removed, the settings are designed to provide stable, high-performance driving both on and off-road.
These leaf springs are designed for RHD (right-hand drive), but it is possible to install for LHD (left-hand drive) as well. Actually, several of our LHD customers have already installed these products without any issues. If there is a difference in height between the left and right, please consider using the included leaf spacers. However, this has only ever been tested on one model of LHD Jimny and may not work on all models. This product is designed so that the right side (driver's seat side) of RHD is slightly higher when no one is on board.
This kit comes with FINAL Leaf Springs, FINAL Shock Absorbers, 50mm extended brake hoses, Round Shackles +50mm, carbon and polyurethane bushes set, front caster wedges 3°, and Rear caster wedges 3°.
Leaf Springs
Number of leaves: front 4, rear 5
Width of leaves: 50mm
Leaves’ thickness: front 6/6/6/5, rear 6/L5,R6/5/5/5 mm (from top to bottom)
|
|
front |
rear |
|
spring rate (kgf/mm) |
L3.25 R3.25 |
L2.34 R2.64 |
|
free camber (mm) |
L115 R130 |
L180 R195 |
Shock Absorbers
|
|
front |
rear |
|
extended length (mm) |
454 |
480 |
|
compressed length (mm) |
282 |
300 |
Applicable vehicles: Jimny (1981-1995) JB31, JA51, 71, 11, SJ30, 40 RHD (right-hand drive)
Brand: TANIGUCHI
Lift height: front 65mm, rear 70mm (JA51)
Mounting: Professional (professional installation required)
About TANIGUCHI:
Our shop trusts "Off-Road Service TANIGUCHI" is Japan's best Jimny custom parts supplier. They have manufactured more than 300 Jimny products since 1983. Especially their suspensions and drivetrains are best-performance products. TANIGUCHI spends a lot of time testing its products with leading test drivers. Also, protection, interior, and exterior products have been highly evaluated for their superior quality and thoughtful construction.
