A Kit consisting of only basic parts. We also recommend the Standard Plus Kit with additional correction parts. This 40mm Lift Suspension Kit has a stiffer suspension compared to the TANIGUCHI 60mm Lift Suspension Kit, providing a stable drive in any situation.

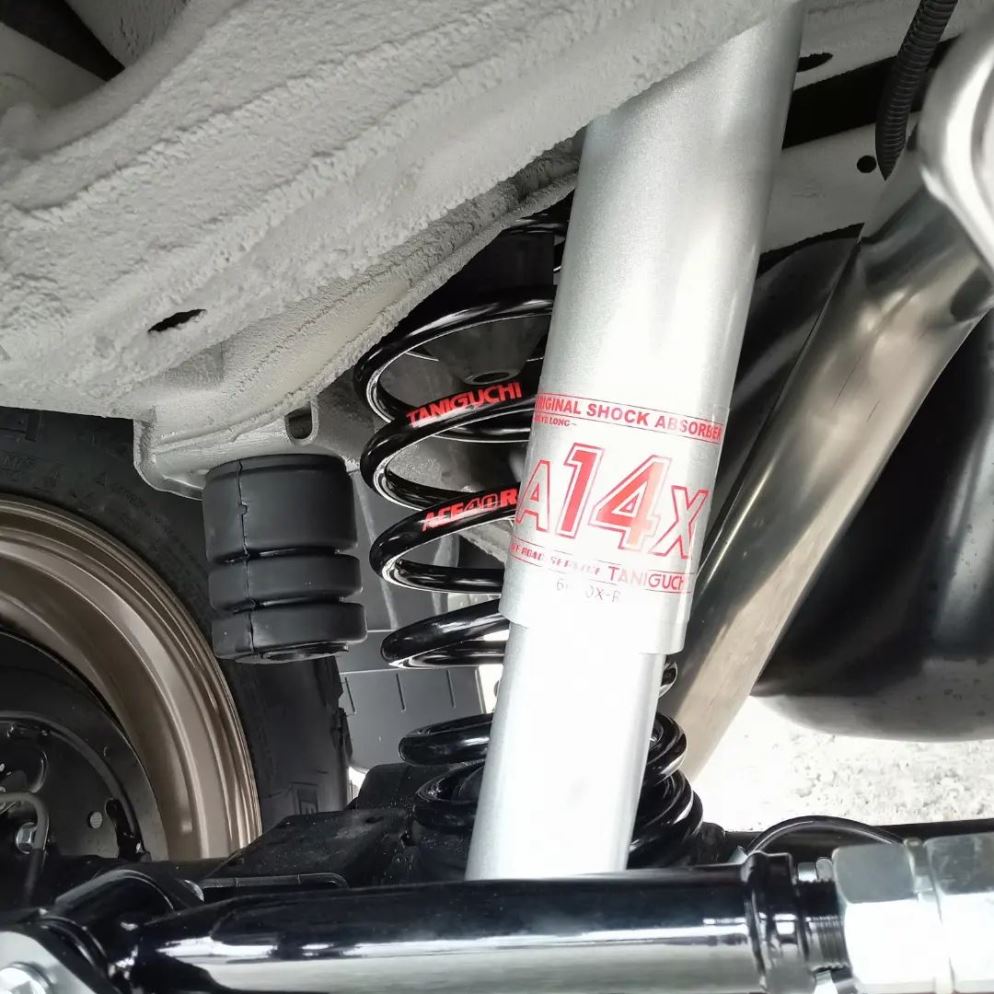

We recommend these products as the excellent all-round suspension kit for Jimny in Japan because they ensure a stable ride. These Adjustable Shock Absorbers and Coil Springs are specifically designed by TANIGUCHI for Jimny (2018-ON). Computer simulations, off-road, high-speed, and city driving tests were conducted numerous times.
Dual-rate Coil Springs are always allowing for a stable and smooth ride. Shock Absorbers can be adjusted in 14 steps, enabling settings to suit various driving styles. And due to the long suspension travel and low center of gravity, it's also excellent on rough roads. Made in Japan.

In a normal situation, the recommended damping settings are Front: 7 and Rear: 9. Lower settings such as Front: 5-6, and Rear: 7-8 are recommended for off-road driving, or if you like soft and comfortable driving. Higher settings such as Front: 8-9, and rear: 10-11 are recommended if a heavy roof rack is installed, or you wish to suppress roll and seek solid, sporty, and stable driving. However, some people prefer a firmer ride off-road, so it's up to you. We don't recommend 1 or 14, so please set them between 2 and 13.

TANIGUCHI suspensions are highly recommended as the best performance suspension for Jimny in Japan. They are designed from Jimny's vast data and technology by TANIGUCH's 40 years of Jimny experience. They spend a lot of time testing these products with leading test drivers and these products are manufactured with top automobile makers. It is a high-performance suspension that has improved on-road and off-road driving performance, drive quality, and comfort more than the SUZUKI original ones. Also, whether the stabilizer is installed or removed, the settings are designed to provide stable, high-performance driving both on and off-road.

Please note that these products are designed for a RHD (right-hand drive) Jimny, but it is possible to install them for a LHD (left-hand drive) as well. Actually, several of our LHD customers have already installed these products without any issues. If there is a difference in height between the left and right, please consider using the coil spacers. However, this has not been tested and may not work on all models. This product is designed so that the right side (driver's seat side) of RHD is slightly higher when no one is on board.

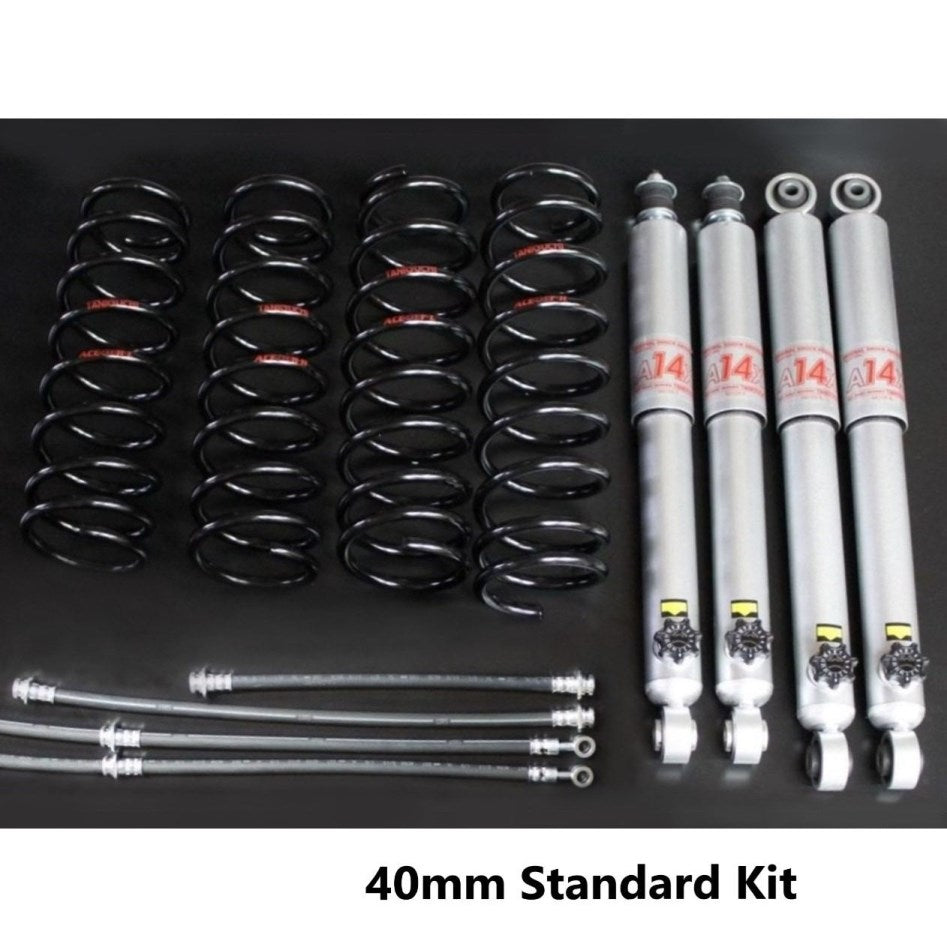

A) 40 mm Lift Standard Suspension Kit (146,600 JPY) includes Coil Springs, Shock Absorbers, and 50mm Extended Brake Hoses.
B) 40 mm Standard Plus Suspension Kit (168,600 JPY) includes Standard Kit plus two of Caster Correction Bushes 5.0, and Rear Panhard Rod Relocation Bracket.
C) 40 mm Lift Premium Suspension Kit (210,900 JPY) includes Standard Plus Kit plus Front and Rear Adjustable Panhard Rods, and X-Large Extended Bump Stops.

[ Required ]
- Remove front cross member or replace with Drop Cross Member

[ Recommended ]
- Caster Correction Bushes 5.0 (almost necessary)

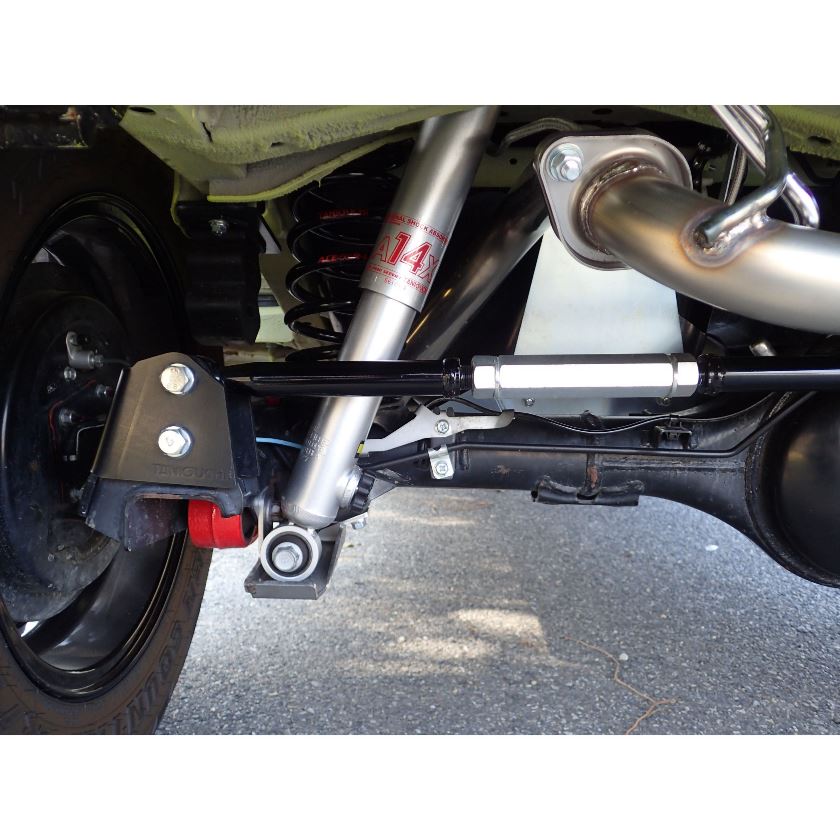

- Rear Panhard Rod Relocation Bracket
- Front and rear adjustable Panhard rods
- Extended rear bump stops (X-large Bump Stops or Figure 8 Bump Stops etc.)

* Because of using the shock absorbers with a long suspension travel, tires may hit the body on hard off-road driving. So, adding the X-large Bump Stops is recommended. Figure 8 Bump Stops are also recommended for hard off-road driving. Brackets are required for installing the Figure 8 Bump Stops.

[ Required in some cases ]
- Headlight Leveler Fixed Stay or Adjustable Headlight Leveler Rod
- Stabilizer Relocation Bracket etc.

Coil Springs

 Shock Absorbers

Applicable vehicles: Jimny (2018-present) JB74, 64 RHD (right handle drive)
Brand: TANIGUCHI

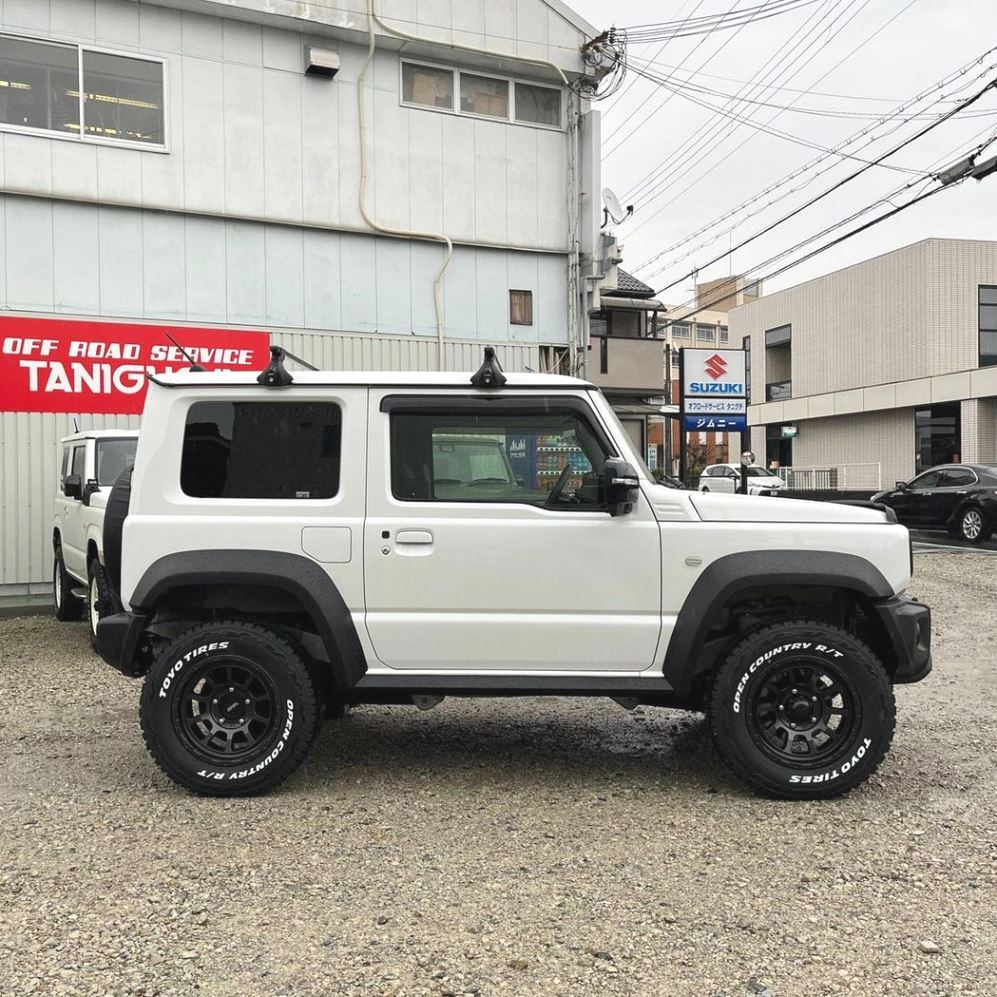

Lift height: front 35mm, rear 40mm (JB74)
Mounting: Professional (professional installation required)

About TANIGUCHI:
Our shop trusts "Off-Road Service TANIGUCHI" is Japan's best Jimny custom parts supplier. They have manufactured more than 300 Jimny products since 1983. Especially their suspensions and drivetrains are best-performance products. TANIGUCHI spends a lot of time testing its products with leading test drivers. Also, protection, interior, and exterior products have been highly evaluated for their superior quality and thoughtful construction.
