Specifically designed coil springs for Jimny JB23 by TANIGUCHI and CHUHATSU with the technology "SASC". They are very popular, great all-round coil springs, and good for both on-road and off-road. When the suspension contracts, the coil does not bend. It straightens and when the maximum bump is applied, there is no contact between the lines, so there is no impact or noise. It was developed paying special attention to all the springs' length, rate, and wire diameters. Computer simulations, off-road, high-speed, and city driving tests were conducted numerous times.
When used with TANIGUCHI shock absorbers, excellent stability, and comfort are realized from off-road to city driving. The durability and rust resistance are the same as those of the major automobile manufacturers' original coil springs. Made in Japan
SASC (Side Action Spring by CHUHATSU); More than a hundred points on the SASC, unlike conventional vertical stroke, have been tested and analyzed in simulation and in vehicles on the road. This in depth analyses has created an action spring that has lower friction which greatly improves driving comfort and steering performance.
TANIGUCHI suspensions are highly recommended as the best performance suspension for Jimny in Japan. They are designed from Jimny's vast data and technology by TANIGUCH's 40 years of Jimny experience. They spend a lot of time testing these products with leading test drivers and these products are manufactured with top automobile makers. It is a high-performance suspension that has improved on-road and off-road driving performance, drive quality and comfort more than the SUZUKI original one. Also, whether the stabilizer is installed or removed, the settings are designed to provide stable, high-performance driving both on and off-road.

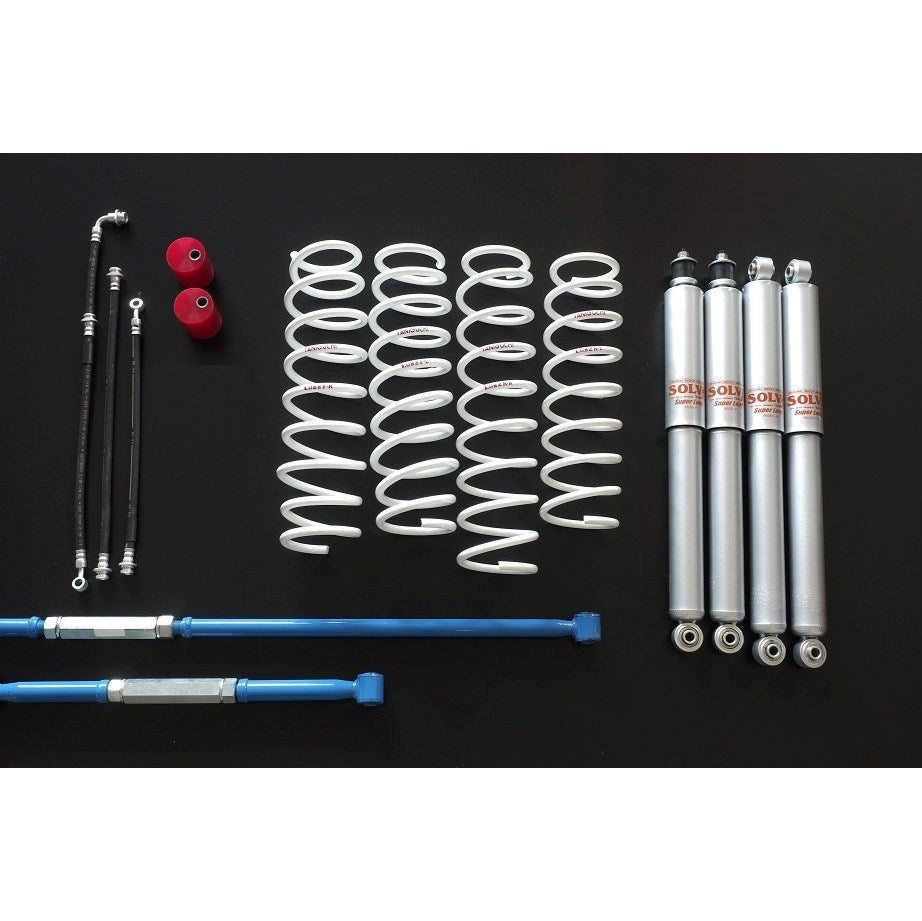

Comes in a set of four coil springs (42,200 JPY). TANIGUCHI 3" Lift Suspension Kit is also available (158,800-209,300 JPY)
* These coil springs lift your Jimny by 2 inches / 50mm. Both these TANIGUCHI 2-inch Lift Coil Springs and 3-inch Lift Coil Springs are high-performance and high-quality, all-round coil springs. Compared to the 3-inch Lift Coil Springs, these 2-inch Lift Coil Springs offer slightly better ride comfort, but both have almost the same characteristics. Please choose according to your favorite lift amount. Also, 70mm Lift Dual-rate Coil Springs are available. Dual-rate Coil Springs offer excellent comfort and controllability at high-speed driving even on rough off-road.
* These products are designed for Jimny JB23 JDM (Japan Domestic Market) 660cc and JB33. Please note they don't fit JB43.
[ Required ]
- Longer shock absorbers
- 50mm extended brake hoses
[ Recommended ]
- Caster Correction Bushes 5.0, or Caster Corrected Front Radius Arms (almost necessary)
- Rear Adjustable Panhard Rod, or Rear Panhard Rod Relocation Brackets (both recommended)
- Front Adjustable Panhard Rod, or Steering and Front Panhard Rod Correction Kit
[ Required in some cases ]
- Propeller shaft spacer
- Stabilizer correction item (Offset Stabilizer Bracket etc.)
- Extended bump stop (X-large Bump Stop or Bump Stop Block etc.)
|
free length (mm) |
spring rate (N/mm) |
|
| FR | 409.0 | 18.0 |
|
FL |
384.5 |
18.0 |
|
RR |
438.0 |
14.0 |
|
RL |
369.0 |
14.0 |
Applicable vehicles: Jimny (1998-2018) JB23 JDM, JB33 RHD (right handle drive)
Brand: TANIGUCHI, CHUHATSU
Lift height: front 50mm, rear 50mm
Mounting: Professional (professional installation required)
About TANIGUCHI:
Our shop trusts "Off-Road Service TANIGUCHI" is Japan's best Jimny custom parts supplier. They have manufactured more than 300 Jimny products since 1983. Especially their suspensions and drivetrains are best-performance products. TANIGUCHI spends a lot of time testing its products with leading test drivers. Also, protection, interior, and exterior products have been highly evaluated for their superior quality and thoughtful construction.
TANIGUCHI 2-inch Lift Coil Springs Jimny JB23 JDM (1998-2018)
Specifically designed coil springs for Jimny JB23 by TANIGUCHI and CHUHATSU with the technology "SASC". They are very popular, great all-round coil springs, and good for both on-road and off-road. When the suspension contracts, the coil does not bend. It straightens and when the maximum bump is applied, there is no contact between the lines, so there is no impact or noise. It was developed paying special attention to all the springs' length, rate, and wire diameters. Computer simulations, off-road, high-speed, and city driving tests were conducted numerous times.
When used with TANIGUCHI shock absorbers, excellent stability, and comfort are realized from off-road to city driving. The durability and rust resistance are the same as those of the major automobile manufacturers' original coil springs. Made in Japan
SASC (Side Action Spring by CHUHATSU); More than a hundred points on the SASC, unlike conventional vertical stroke, have been tested and analyzed in simulation and in vehicles on the road. This in depth analyses has created an action spring that has lower friction which greatly improves driving comfort and steering performance.
TANIGUCHI suspensions are highly recommended as the best performance suspension for Jimny in Japan. They are designed from Jimny's vast data and technology by TANIGUCH's 40 years of Jimny experience. They spend a lot of time testing these products with leading test drivers and these products are manufactured with top automobile makers. It is a high-performance suspension that has improved on-road and off-road driving performance, drive quality and comfort more than the SUZUKI original one. Also, whether the stabilizer is installed or removed, the settings are designed to provide stable, high-performance driving both on and off-road.
Comes in a set of four coil springs (42,200 JPY). TANIGUCHI 3" Lift Suspension Kit is also available (158,800-209,300 JPY)
* These coil springs lift your Jimny by 2 inches / 50mm. Both these TANIGUCHI 2-inch Lift Coil Springs and 3-inch Lift Coil Springs are high-performance and high-quality, all-round coil springs. Compared to the 3-inch Lift Coil Springs, these 2-inch Lift Coil Springs offer slightly better ride comfort, but both have almost the same characteristics. Please choose according to your favorite lift amount. Also, 70mm Lift Dual-rate Coil Springs are available. Dual-rate Coil Springs offer excellent comfort and controllability at high-speed driving even on rough off-road.
* These products are designed for Jimny JB23 JDM (Japan Domestic Market) 660cc and JB33. Please note they don't fit JB43.
[ Required ]
- Longer shock absorbers
- 50mm extended brake hoses
[ Recommended ]
- Caster Correction Bushes 5.0, or Caster Corrected Front Radius Arms (almost necessary)
- Rear Adjustable Panhard Rod, or Rear Panhard Rod Relocation Brackets (both recommended)
- Front Adjustable Panhard Rod, or Steering and Front Panhard Rod Correction Kit
[ Required in some cases ]
- Propeller shaft spacer
- Stabilizer correction item (Offset Stabilizer Bracket etc.)
- Extended bump stop (X-large Bump Stop or Bump Stop Block etc.)
|
free length (mm) |
spring rate (N/mm) |
|
| FR | 409.0 | 18.0 |
|
FL |
384.5 |
18.0 |
|
RR |
438.0 |
14.0 |
|
RL |
369.0 |
14.0 |
Applicable vehicles: Jimny (1998-2018) JB23 JDM, JB33 RHD (right handle drive)
Brand: TANIGUCHI, CHUHATSU
Lift height: front 50mm, rear 50mm
Mounting: Professional (professional installation required)
About TANIGUCHI:
Our shop trusts "Off-Road Service TANIGUCHI" is Japan's best Jimny custom parts supplier. They have manufactured more than 300 Jimny products since 1983. Especially their suspensions and drivetrains are best-performance products. TANIGUCHI spends a lot of time testing its products with leading test drivers. Also, protection, interior, and exterior products have been highly evaluated for their superior quality and thoughtful construction.
